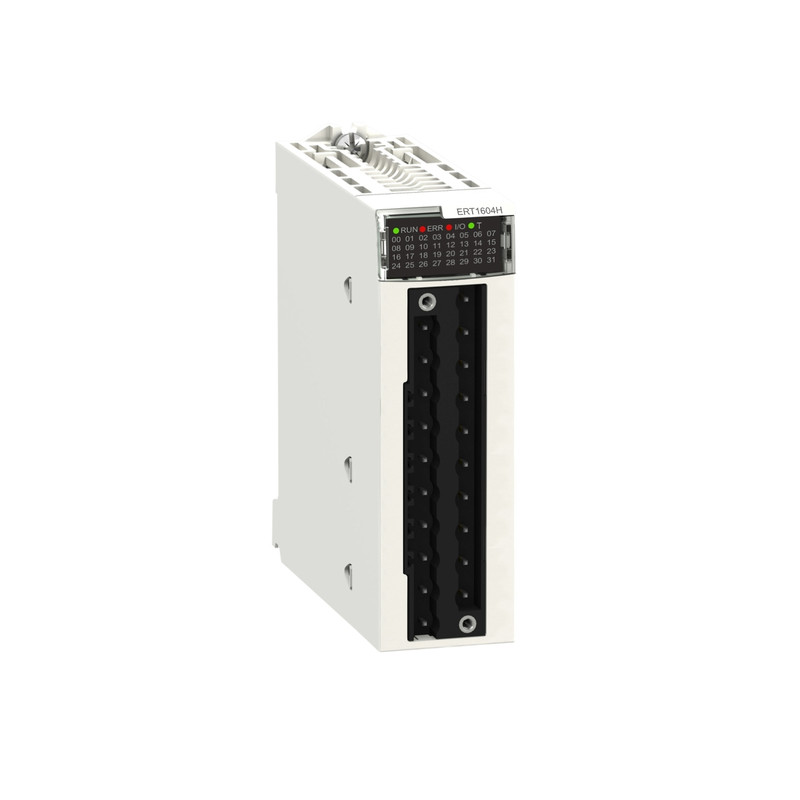

Schneider PLC Modicon M340_ multifunction input module Modicon X80 - 16 I - 24/24..125 V_ [BMXERT1604T]
Industrial Automation / PLC / Modular PLC Accessories
This product is Partsof the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This multifunction input module has 16 inputs with hot swap function. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. It is an module with a rated supply voltage of 24V DC, 48V DC to 60V DC, 110V DC to 125V DC and a current consumption of 30mA. This product is robust, high quality and based on the latest innovative technology. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height). It is suitable for medium to large process applications. This product is certified by Merchant Navy, C-Tick and GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same Spare Partsin stock, and unique training for different Programmable Automation Controllers (PAC)._ [BMXERT1604T]
Specifications
Main
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Multifunction input module |
Complementary
| Function available | Hot swap |
|---|---|
| Data recording | 1 ms time stamps |
| Time synchronisation protocol | DCF77 IRIG-B |
| group of channels | 4 groups of 4 inputs for process input |
| [Us] rated supply voltage | 24 V DC (voltage range: 19...30 V) 48...60 V DC (voltage range: 38...75 V) 110...125 V DC (voltage range: 88...156 V) |
| switching voltage | 125 V at 1.3 mA for process input 110 V at 1.3 mA for process input 60 V at 2.5 mA for process input 48 V at 2.5 mA for process input 24 V at 6.7 mA for process input |
| maximum power consumption in W | 4 W for process input |
| current consumption | 30 mA at 24 V DC 130 mA at 3.3 V DC |
| isolation voltage | 2500 V DC for 60 s bus to discrete input 1400 V DC for 60 s bus to IRIG/DCF 2500 V DC for 60 s discrete input to IRIG/DCF |
| Anti bounce filtering | Configurable from 0 to 255 ms |
| Sampling duration | 0.5 ms |
| acquisition time | 1 ms |
| local signalling | 1 LED (green) for firmware and module run (RUN) 1 LED (green) for status of time code input (T) 1 LED (red) for module fault (ERR) 1 LED (red) for power supply interruption (I/O) 16 LEDs for input status (0...15) |
| Width | 32 mm |
| Height | 100 mm |
| Depth | 86 mm |
Environment
| Ambient air temperature for operation | -25…70 °C |
|---|---|
| Ambient air temperature for storage | -40…85 °C |
| relative humidity | 95 % without condensation |
| Operating altitude | <= 4000 m |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE RCM CSA EAC Merchant Navy UL |
| standards | EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| environmental characteristic | Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 11.0 cm |
| Package 1 Length | 11.7 cm |
| Package 1 Weight | 153.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 2.6 kg |
