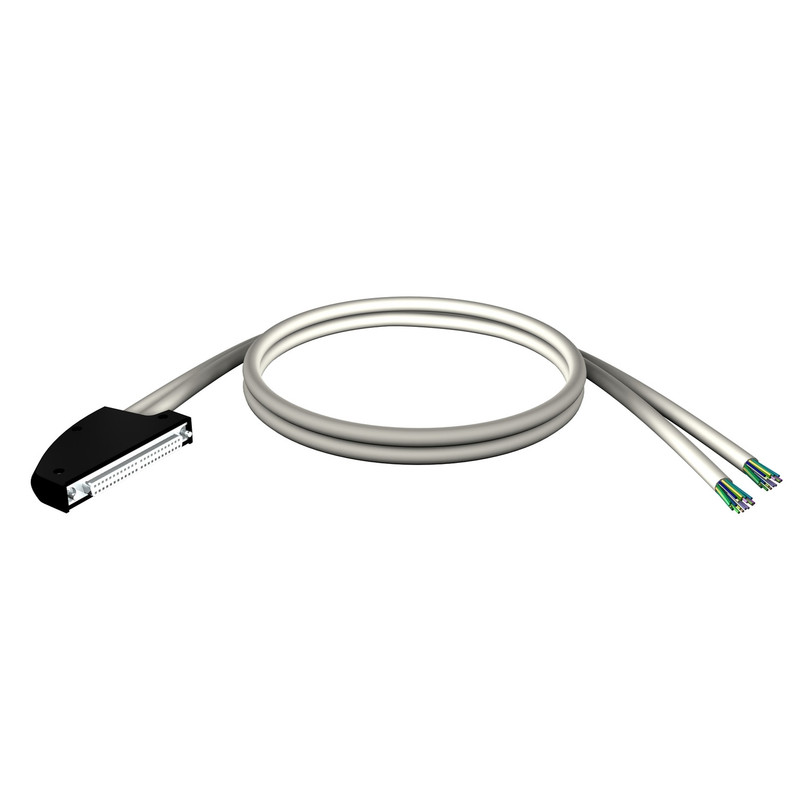

Schneider PLC Modicon M340_ cord set - 40-way terminal - two ends flying leads - for M340 I/O - 3 m_ [BMXFCW303]
Industrial Automation / PLC / Modular PLC Accessories
This preassembled cordset is Partsof the Modicon X80 modules. It is compatible with 32 channels modules. It enables the connection between the I/O of modules with 40-way connectors and the sensors, preactuators._ [BMXFCW303]
Specifications
Main
| range of product | Modicon X80 |
|---|---|
| accessory / separate part type | Preformed cordset |
| accessory / separate part designation | Preformed cordset with one end with flying leads |
| accessory / separate part destination | For I/O module with 40-way connectors |
| number of cables | 2 |
| electrical connection | 1 connector 40 ways 2 ends with color-coded flying leads conforming to DIN 47100 |
| Cable length | 3 m |
Complementary
| total number of wires | 40 |
|---|---|
| wire section | 0.324 mm² |
| AWG gauge | AWG 22 |
| Net weight | 0.9 kg |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5 cm |
| Package 1 Width | 27 cm |
| Package 1 Length | 27 cm |
| Package 1 Weight | 889 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 5.684 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 288 |
| Package 3 Height | 110 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 284.83 kg |
