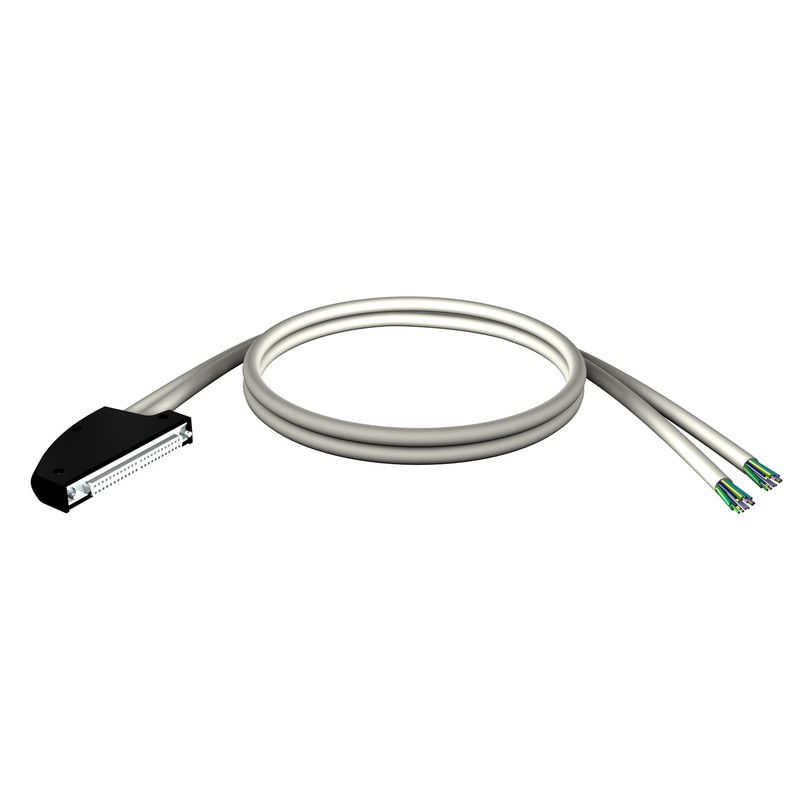

Schneider PLC Modicon M340_ cord set - 40-way terminal - two ends flying leads - for M340 I/O - 5 m_ [BMXFCW503]
Industrial Automation / PLC / Modular PLC Accessories
This product is Partsof the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This cordset is an accessory of I/O module. The length of this cable is 5m. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector and two-end color-coded flying leads (conforming to DIN 47100) for electrical connection. It weighs 1.49kg. It is suitable for medium to large process applications. This cordset is compatible with Modicon M340 automation platform discrete I/O modules. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same Spare Partsin stock, and unique training for different Programmable Automation Controllers (PAC)._ [BMXFCW503]
Specifications
Main
| Range of product | Modicon X80 |
|---|---|
| accessory / separate part type | Preformed cordset |
| Accessory / separate part designation | Preformed cordset with one end with flying leads |
| Accessory / separate part destination | For I/O module with 40-way connectors |
| number of cables | 2 |
| electrical connection | 1 connector 40 ways 2 ends with color-coded flying leads conforming to DIN 47100 |
| Cable length | 5 m |
Complementary
| Total number of wires | 40 |
|---|---|
| Wire section | 0.324 mm² |
| AWG gauge | AWG 22 |
| relative impedance | 10 MOhm for <= 50 V 100 MOhm for 50...250 V |
| Product weight | 1.49 kg |
Environment
| Standards | CSA C22.2 No 142 EN/IEC 61131-2 UL 508 |
|---|
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.3 cm |
| Package 1 Width | 24.9 cm |
| Package 1 Length | 27.1 cm |
| Package 1 Weight | 1.44 kg |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 6.3 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 112 |
| Package 3 Height | 75 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 178 kg |
