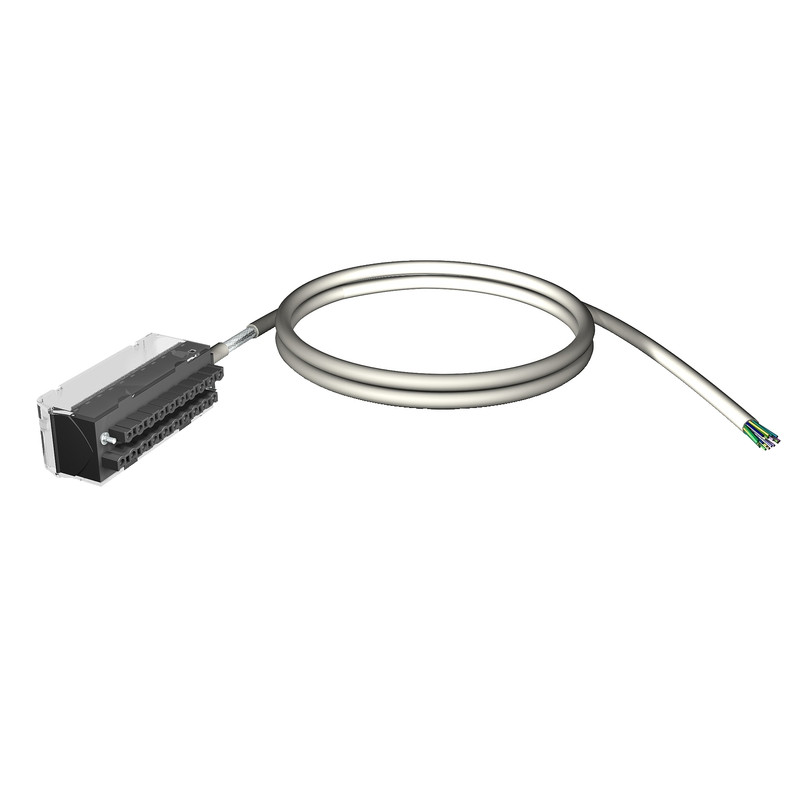

Schneider PLC Modicon M340_ cord set - 20-way terminal - one end flying leads - for M340 I/O - 5 m_ [BMXFTW501]
Industrial Automation / PLC / Modular PLC Accessories
This preassembled cordset is Partsof the Modicon X80 modules. It is compatible with 16-channel I/O modules with removable terminal block. It enables the connection between the I/O of modules with 20-way removable terminal block and the sensors, preactuators. It is equipped with one 20-way spring-type removable terminal block and one end with color-coded flying leads. It is 5 meters long._ [BMXFTW501]
Specifications
Main
| Range of product | Modicon X80 |
|---|---|
| accessory / separate part type | Preformed cordset |
| Accessory / separate part designation | Preformed cordset with one end with flying leads |
| Accessory / separate part destination | For I/O module with removable terminal block |
| number of cables | 1 |
| electrical connection | 1 end with color-coded flying leads conforming to DIN 47100 1 removable terminal block 20 ways |
| Cable length | 5 m |
Complementary
| Total number of wires | 20 |
|---|---|
| Wire section | 0.324 mm² |
| Product weight | 1.4 kg |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.0 cm |
| Package 1 Width | 24.0 cm |
| Package 1 Length | 27.0 cm |
| Package 1 Weight | 800.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 6.65 kg |
