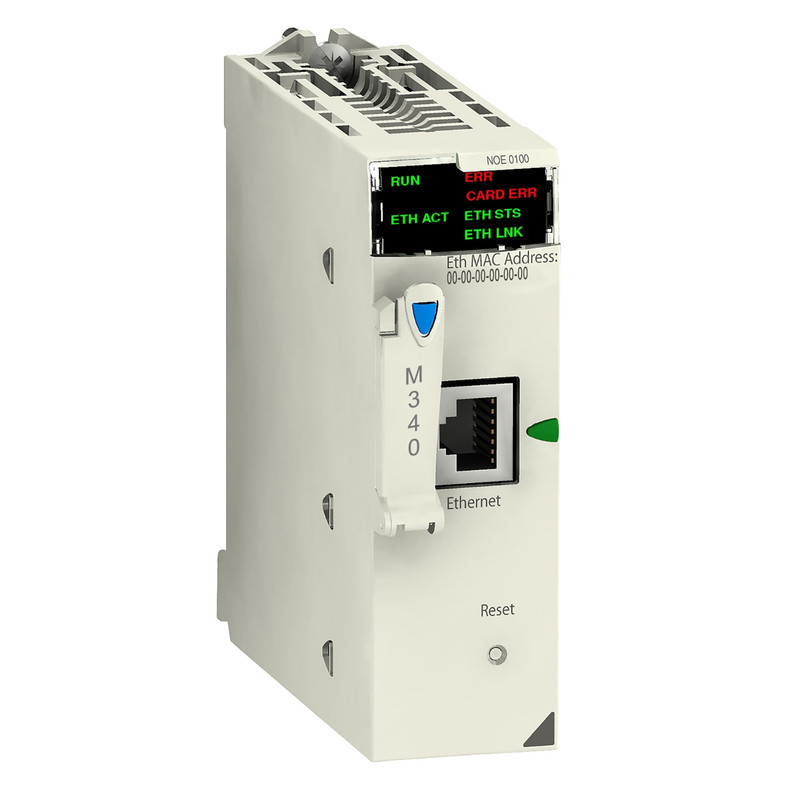

Schneider PLC Modicon M340_ Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, 1 x RJ45 10/100_ [BMXNOE0100]
Industrial Automation / PLC / Modular PLC
This Ethernet TCP/IP network module is Partsof the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has RJ45 10/100Mbps connection. It is a module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable. It is an IP20 rated product. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with flash memory card (BMXRWSC016M). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third Partsy devices._ [BMXNOE0100]
Specifications
Main
| Range of product | Modicon M340 automation platform |
|---|---|
| Product or component type | Ethernet TCP/IP network module |
| Concept | Transparent Ready |
| integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class B30 |
| Protective treatment | TC |
Complementary
| communication service | Bandwidth management Data Editor (via PC terminal) FDR server Rack Viewer SNMP network administrator Global Data I/O scanning Modbus TCP messaging Web server configurable |
|---|---|
| Port Ethernet | 10BASE-T/100BASE-TX |
| memory description | Supplied Flash memory card (BMXRWSC016M) |
| memory usage | Application saving Activating the standard web server |
| Supply | Internal power supply via rack |
| Marking | CE |
| local signalling | 1 LED (green) for activity on Ethernet network (ETH ACT) 1 LED (green) for processor running (RUN) 1 LED (green) for status of Ethernet network (ETH STS) 1 LED (red) for data rate (ETH 100) 1 LED (red) for memory card fault (CARD ERR) 1 LED (red) for processor or system fault (ERR) |
| Control type | RESET push-button cold restart |
| current consumption | 90 mA at 24 V DC |
| Module format | Standard |
| Product weight | 0.2 kg |
Environment
| Ambient air temperature for operation | 0…60 °C |
|---|---|
| relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.1 cm |
| Package 1 Width | 11.0 cm |
| Package 1 Length | 11.5 cm |
| Package 1 Weight | 240.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.8 kg |
