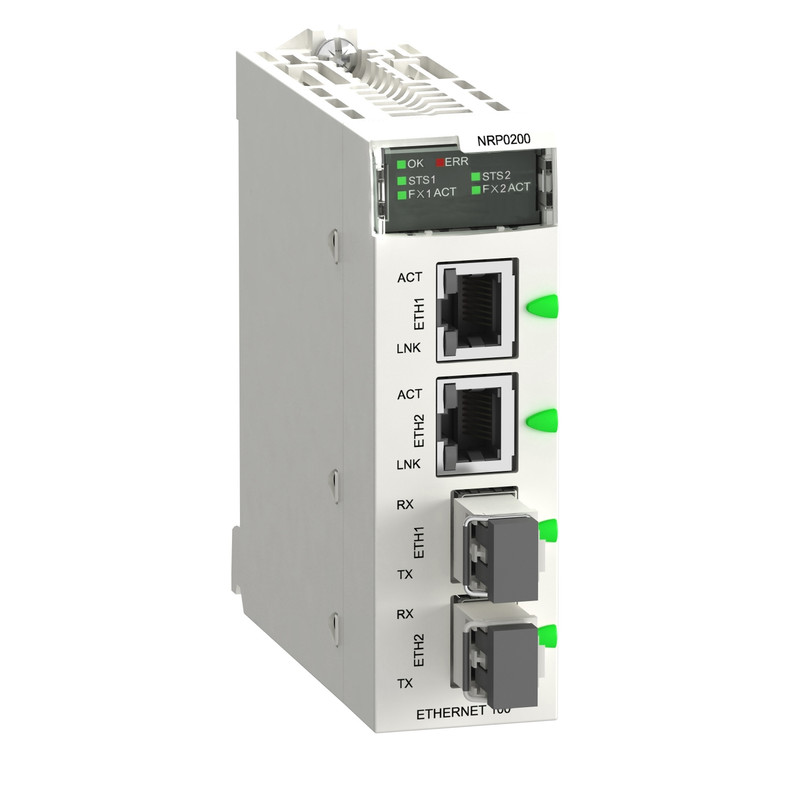

Schneider PLC Modicon M340_ Fiber Converter MM/LC 2CH 100Mb_ [BMXNRP0200]
Industrial Automation / PLC / Modular PLC
This fiber converter is Partsof the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports multimode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 2000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same Spare Partsin stock, and unique training for various Programmable Automation Controllers (PAC)._ [BMXNRP0200]
Specifications
Main
| range of product | Modicon X80 |
|---|---|
| product or component type | Fibre optic repeater |
| optic fiber type | Multi mode |
Complementary
| rated voltage | 24 V |
|---|---|
| current consumption | 140 mA typical 200 mA maximum |
| function available | Hot swap |
| number of port | 2 RJ45 with 100BASE-TX port Ethernet conforming to IEEE 802.3u 2 fiber optic with 100BASE-FX port Ethernet conforming to IEEE 802.3u |
| local signalling | 1 LED (green) for power supply status 1 LED (red) for error condition (ERR) 2 LEDs (green) for link status 2 LEDs (green) for fiber port state and activity |
| wavelength | 1310 nm |
| operating distance | 0...2000 m |
| attenuation | -23.5…-14 dB (50/125 µm) -20…-14 dB (62.5/125 µm) |
| rise/fall time | 3 ns |
| receiver sensitivity | - 31...- 14 dBm |
| Marking | CE |
| width | 32 mm |
| Height | 100 mm |
| Depth | 86 mm |
| Net weight | 203 g |
Environment
| Ambient air temperature for operation | 0…60 °C |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 0…95 % |
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| product certifications | CE RCM CSA EAC Merchant Navy UL |
| standards | EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| dielectric strength | 1400 V DC between field and bus 500 V DC between channels |
| IP degree of protection | IP20 |
| Operating altitude | 0...4000 m |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 11.0 cm |
| Package 1 Length | 12.5 cm |
| Package 1 Weight | 244.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 14 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.416 kg |
