Schneider PLC Modicon M340_ Modicon M340 automation platform, backplane expander for multiracks configuration_ [BMXXBE1000]
Industrial Automation / PLC / Modular PLC Accessories

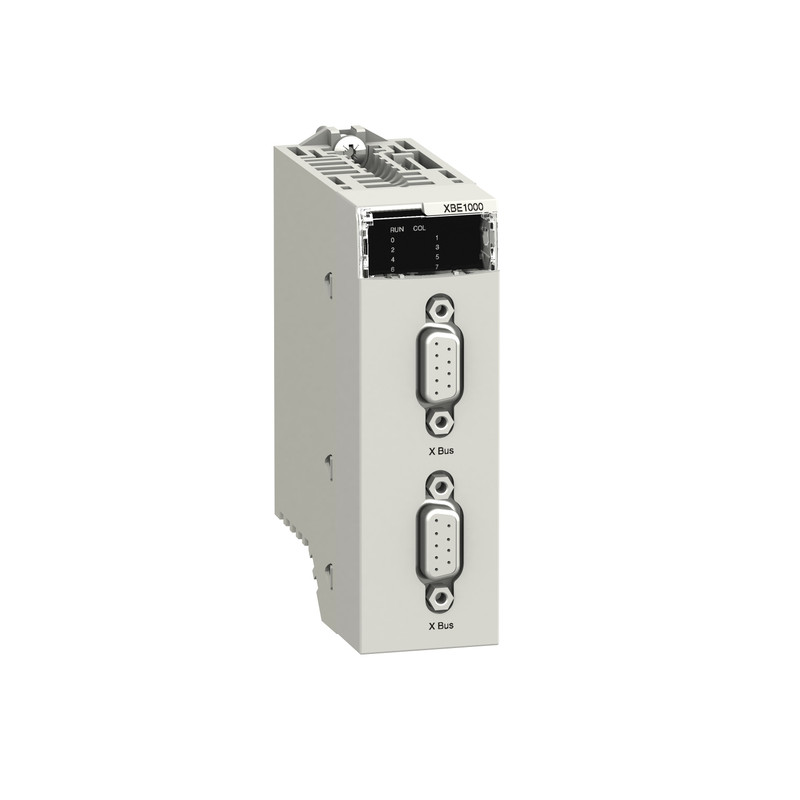

This product is Partsof the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This backplane expander is an extension accessory of Modicon M580 and M340 Programmable Automation Controllers (PAC). It is an Ethernet backplane rack with a current of 160mA at 24V DC and 22mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2 x 9-way SUB-D female connectors for electrical connection. It is an IP20 rated product. It is suitable for medium to large process applications and expander is It is suitable for multiracks configuration. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane expander is compatible with Modicon M340 BMXXBP0600, BMXXBP0400, BMXXBP0800 and BMXXBP1200 backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same Spare Partsin stock, and unique training for different Programmable Automation Controllers (PAC)._ [BMXXBE1000]
Specifications
Main
Range of product | Modicon M340 automation platform |
---|---|
Accessory / separate part category | Extension accessory |
accessory / separate part type | Backplane |
Accessory / separate part designation | Backplane expander |
Product compatibility | BMXXBP0600 BMXXBP0400 BMXXBP0800 BMXXBP1200 |
Accessory / separate part destination | For multiracks configuration |
Complementary
electrical connection | 2 female connectors SUB-D 9 |
---|---|
local signalling | 1 LED green for operating status (RUN) bus 1 LED red for collision error (COL) rack 4 LEDs green for rack adresses status |
current consumption | 160 mA at 24 V DC 22 mA at 3.3 V DC |
Module format | Standard |
Environment
IP degree of protection | IP20 |
---|---|
Ambient air temperature for operation | 0…60 °C |
relative humidity | 10…95 % without condensation |
Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
product certifications | CE UL CSA RCM EAC Merchant Navy |
standards | EN 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G |
environmental characteristic | Hazardous location class I division 2 |
Protective treatment | TC |
Packing Units
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 5.5 cm |
Package 1 Width | 11.0 cm |
Package 1 Length | 11.5 cm |
Package 1 Weight | 179.0 g |
Unit Type of Package 2 | S02 |
Number of Units in Package 2 | 15 |
Package 2 Height | 15.0 cm |
Package 2 Width | 30.0 cm |
Package 2 Length | 40.0 cm |
Package 2 Weight | 3.035 kg |
