Schneider PLC Modicon M340_ Modicon M340 automation platform, rack 8 slots, panel, plate or DIN rail mounting_ [BMXXBP0800]

Schneider PLC Modicon M340_ Modicon M340 automation platform, rack 8 slots, panel, plate or DIN rail mounting_ [BMXXBP0800]

https://www.hsedubai.com/web/image/product.template/49745/image_1920?unique=29e3b48

Industrial Automation / PLC / Modular PLC Accessories

1,800.00 AED 1800.0 AED 1,800.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

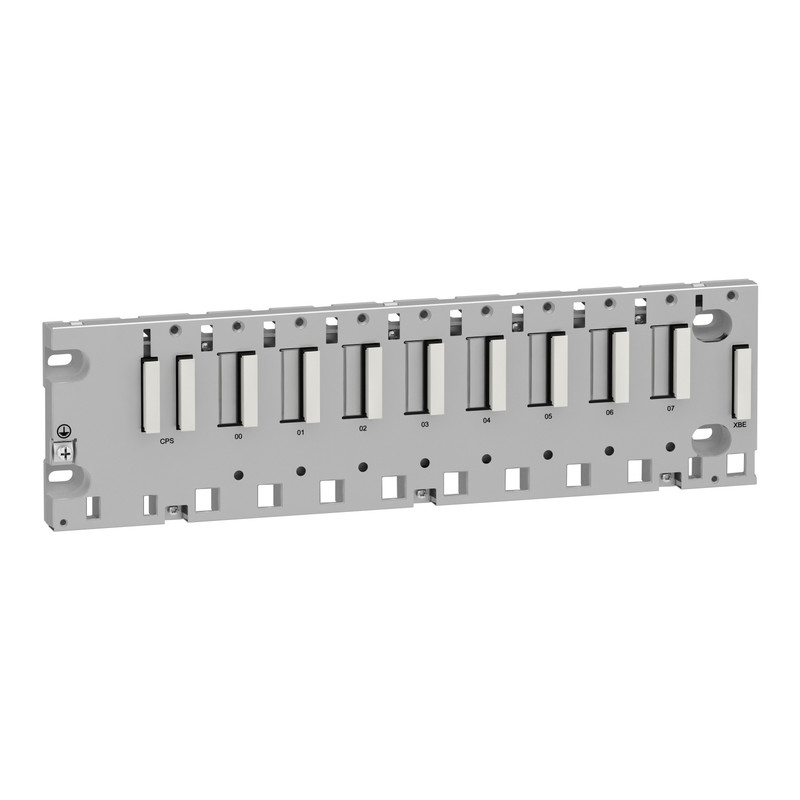

    This 8 slots rack is Partsof the Modicon X80 modules. Number of slots comprises processor, I/O, communication and application-specific modules (excluding power supply module). This rack can be mounted on DIN rail and its weight is 0.95kg._ [BMXXBP0800]


    Specifications

    Main

    Range of productModicon M340 automation platform
    accessory / separate part typeRack

    Complementary

    number of slots8 bus X
    Product compatibilityI/O module
    BMXP34 processor
    BMXCPS power supply
    Specific application module
    Power consumption in W2 W
    electrical connection1 connector (XBE) expansion module
    fixing modeBy 4 screws - diameter: 4.32…6.35 mm, mounting on panel
    By 4 M6 screws, mounting on plate
    By clips, mounting on 35 mm symmetrical DIN rail
    Product weight0.95 kg

    Environment

    IP degree of protectionIP20
    Ambient air temperature for operation0…60 °C
    relative humidity10…95 % without condensation
    Protective treatmentTC

    Packing Units

    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height6.600 cm
    Package 1 Width15.300 cm
    Package 1 Length45.500 cm
    Package 1 Weight1.100 kg
    Unit Type of Package 2S04
    Number of Units in Package 29
    Package 2 Height30.000 cm
    Package 2 Width40.000 cm
    Package 2 Length60.000 cm
    Package 2 Weight9.938 kg
    Unit Type of Package 3P06
    Number of Units in Package 354
    Package 3 Height104.000 cm
    Package 3 Width60.000 cm
    Package 3 Length80.000 cm
    Package 3 Weight66.280 kg
