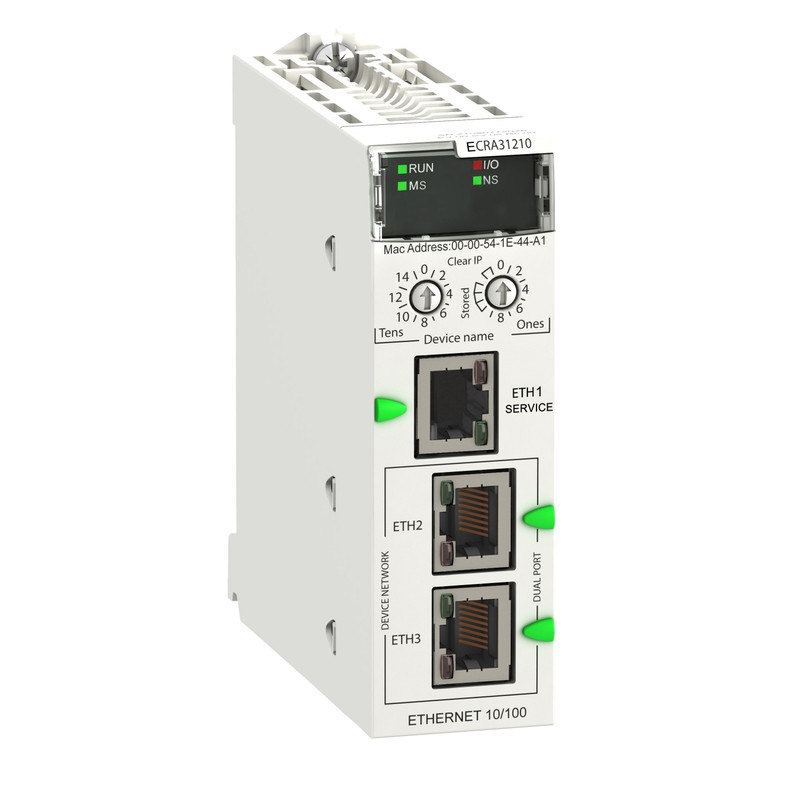

Schneider PLC Modicon M580_ Modicon X80 EIO Drop adapter with Ethernet backplane_ [BMECRA31210]
Industrial Automation / PLC / Modular PLC Accessories
This product is Partsof the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet Remote Input Output (RIO) drop adaptor has 3 ports with Ethernet backplane. Integrated connections are EtherNet/IP for device network and EtherNet/IP for service port. This product is robust, high quality and based on the latest innovative technology. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from remote I/O head adaptor. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This adaptor is compatible with multifunction input module BMXERT, Ethernet module BMXNOM, counter module BMXEHC, 0 to 1024 discrete channels, 0 to 256 analogue channels, HART module BMEAH and weighing module PMESWT. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same Spare Partsin stock, and unique training for different Programmable Automation Controllers (PAC)._ [BMECRA31210]
Specifications
Main
| Range of product | Modicon X80 |
|---|---|
| Range compatibility | Modicon M580 |
| Product or component type | I/O expansion module |
| Device application | X80 Ethernet RIO drop adaptor |
| Product specific application | For remote I/O modules |
Complementary
| bus type | Bus X across the remote backplane Ethernet across the remote backplane |
|---|---|
| Number of port | 3 |
| integrated connection type | 1 port for service or distributed equipment 2 port for Ethernet RIO Network (RSTP) |
| Communication network type | IPv4 (internet protocol) |
| Communication port protocol | EtherNet/IP |
| Communication service | Ethernet/IP adapter RSTP (Ring topology support) Ethernet RIO network Quality of Service (QoS) CIP Explicit messaging (server) Modbus TCP server for module diagnostics DHCP client TFTP client FTP client FDR client SNTP client SNMP agent |
| Cybersecurity | Enable/disable communication ports Syslog protocol support |
| Connector type | 3 RJ45 |
| Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX |
| Transmission rate | 10/100 Mbit/s |
| Port Ethernet | 10/100BASE-TX |
| Function available | CCOTF (configuration change on the fly) Input data is collected and published to the remote I/O head adaptor Output modules are updated with the data received from remote I/O head adaptor Diagnostics for remote I/O devices (Device DDT) Port mirroring System time stamping Non-interfering type 1 I/O extension rack |
| Data recording | 10 ms time stamps |
| Topology | Ring |
| local signalling | 1 LED (green) for module active (RUN) 1 LED (red) for module error (ERR) 1 LED (green/red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) 1 LED (green) for Ethernet link diagnostics (STS) |
| Current consumption | 1800 mA |
| input voltage | 3.3 V DC |
| product compatibility | 0…1024 discrete channel 0…256 analog channel counter module time-stamping module SSI encoder interface module motion control module frequency input module AS-Interface module serial link module fiber converter modules HART module weighing module CANopen master module (standalone CPU only) PROFIBUS module (standalone CPU only) Ethernet switch module |
| Module format | Standard |
| Product weight | 0.225 kg |
| Maximum altitude transport | 3000 m |
| relative humidity | 95 % without condensation |
| Fixing mode | By screws |
| Mounting mode | Rack-mounted |
| Width | 32 mm |
| Height | 100 mm |
| Depth | 87.5 mm |
Environment
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
|---|---|
| product certifications | CE UL CSA RCM EAC Merchant Navy |
| standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G |
| environmental characteristic | Standard environment |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| operating altitude | <= 2000 m |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.3 cm |
| Package 1 Width | 11.0 cm |
| Package 1 Length | 11.6 cm |
| Package 1 Weight | 265.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 4.22 kg |
