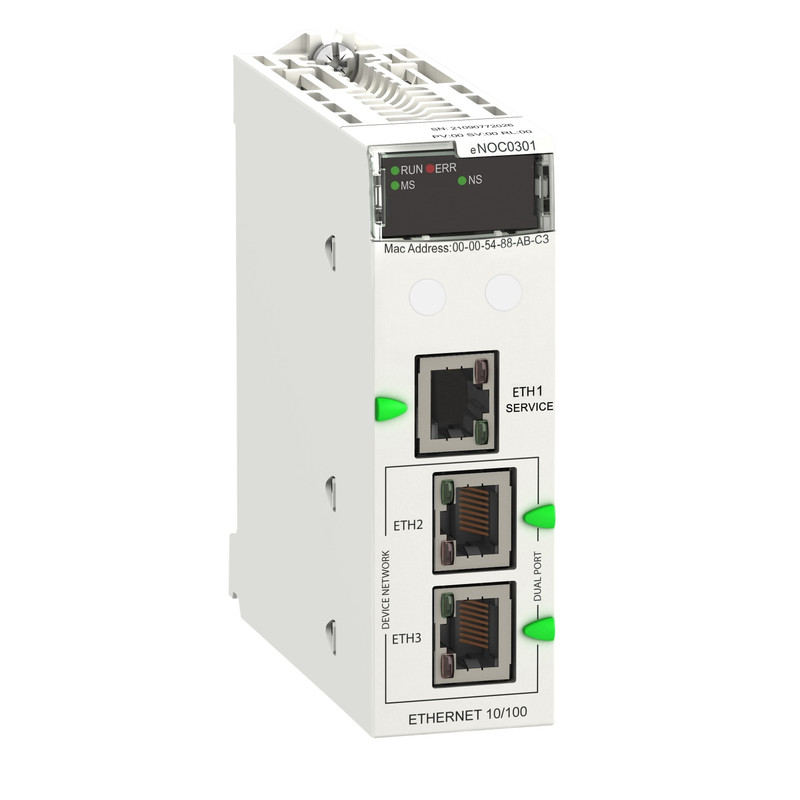

Schneider PLC Modicon M580_ Communication module, Modicon M580, Ethernet 3 port Ethernet_ [BMENOC0301]
Industrial Automation / PLC / Modular PLC
This product is Partsof the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module has 3 ports. It is integrated with 3 Ethernet RJ45 connectors. Communication services are bandwidth management, FDR server, Modbus TCP I/O scanner and messaging, EtherNet/IP I/O scanner and messaging, embedded 4-port switch, RSTP support, SNMP network administrator, embedded multiport switch etc. It is a communication module with a current consumption of 555mA, works with internal power supply. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This connection sub-base is compatible with BMEXBPxxx - Ethernet + X-bus rack. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data._ [BMENOC0301]
Specifications
Main
| range of product | Modicon M580 |
|---|---|
| product or component type | Communication module |
| product compatibility | BMEXBP... - Ethernet + X-bus rack |
| concept | Transparent Ready |
Complementary
| integrated connection type | 3 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, transmission mode: double shielded twisted pair |
|---|---|
| web server | Basic |
| transmission support medium | Ethernet backplane |
| communication service | Bandwidth management FDR server SNMP network administrator Modbus TCP I/O Scanner and Messaging Ethernet/IP I/O Scanner and Messaging RSTP support Port mirroring Embedded multiport switch |
| port Ethernet | 10BASE-T/100BASE-TX |
| supply | Internal power supply via rack |
| Marking | CE |
| module format | Standard |
| current consumption | 900 mA at 3.3 V DC (for product version >= 13) 1800 mA at 3.3 V DC (for product version < 13) |
| Net weight | 0.2 kg |
Environment
| Ambient air temperature for operation | 0…60 °C |
|---|---|
| IP degree of protection | IP20 |
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| local signalling | 1 LED (green) for processor running (RUN) 1 LED (red) for processor or system fault (ERR) 1 LED (green/red) for ETH MS (Ethernet port configuration status) 1 LED (green/red) for Eth NS (Ethernet network status) |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 11.2 cm |
| Package 1 Length | 12.0 cm |
| Package 1 Weight | 300.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 4.85 kg |
