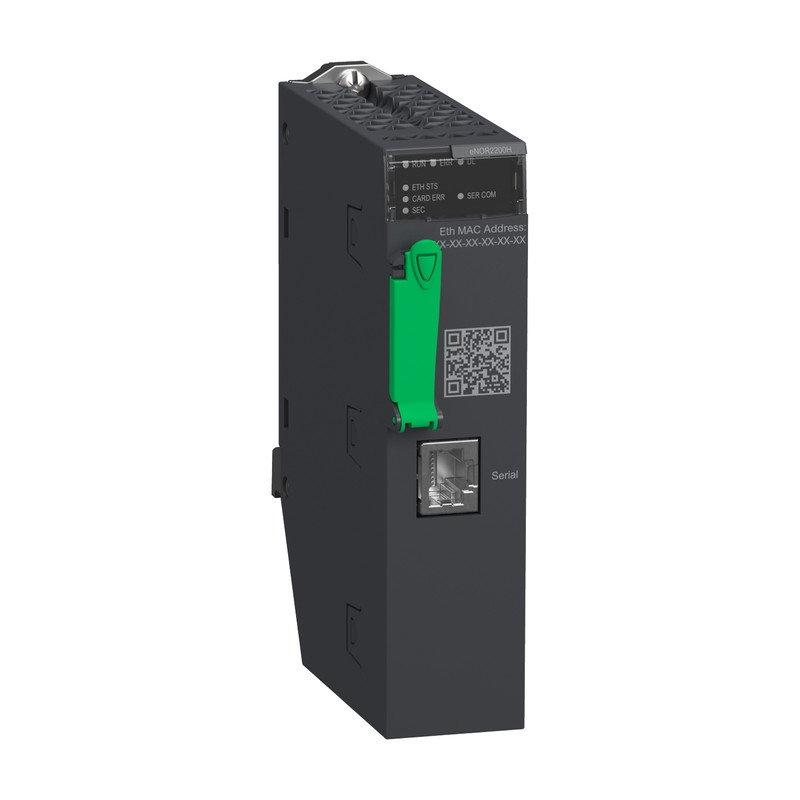

Schneider PLC Modicon M580_ X80 advanced RTU module, Ethernet based, 1 Serial port, hardened_ [BMENOR2200H]

Schneider PLC Modicon M580_ X80 advanced RTU module, Ethernet based, 1 Serial port, hardened_ [BMENOR2200H]

https://www.hsedubai.com/web/image/product.template/49846/image_1920?unique=29e3b48

Industrial Automation / PLC / Modular PLC

6,840.00 AED 6840.0 AED 6,840.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    This communication module is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module enables M580 platform to use RTU protocol exchange with RTU stations. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. This module can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months. It supports up to 64 devices when module acts as Client/Master. It complies with M580 Hot Standby system. The module dimensions are 32x86x131mm, and it weighs 0.345kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. It complies with DNP3 NET IEC60870-5-104 RTU protocol. It can be installed either on an Ethernet or a X-bus rack. The module is delivered in 1 packing unit. It occupies one slot on the rack. This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.

    Specifications

    Main

    Range of productModicon X80
    Product or component typeNetwork/Fieldbus module
    Product specific applicationFor standard & severe environments
    product compatibilityBMEXBP... - Ethernet + X-bus rack
    ConceptTransparent Ready

    Complementary

    integrated connection type1 RS232, connector type: RJ45, transmission rate: 115200 bit/s, transmission mode: 8 wires
    1 RS485, connector type: RJ45, transmission rate: 115200 bit/s, transmission mode: 1 twisted shielded pair
    1 Ethernet, transmission rate: 100 Mbit/s, transmission mode: Ethernet backplane
    communication serviceDNP3 NET server SAv2/SAv5 with pre-shared key
    DNP3 NET client SAv2/SAv5 with pre-shared key
    IEC 60870-5-101 server/client
    IEC 60870-5-104 server/client
    Modbus TCP messaging
    Web server (HTTPS), HTML5
    FDR client
    SNTP client
    SNMP agent
    Time stamped events management
    Automatic events backup on power loss
    Transparent events routing from remote servers to SCADA
    Data logging service
    cybersecurityRole-based access control
    System hardening
    Secure communiction (HTTPS)
    Achilles certified
    Syslog protocol support
    Transport Layer Security for RTU protocols
    SNMP logging
    Certificate based authentication
    memory descriptionSupport flash SD memory card (BMXRMS004GPF) 4 GB
    SupplyInternal power supply via rack
    Protective treatmentConformal coating
    dielectric strength1500 V DC for 1 min, between Serial port and bus/earth
    Module formatStandard
    Shock resistance30 gn
    current consumption110 mA at 24 V DC
    Length86 mm
    Width32 mm
    Height131 mm
    Net weight0.38 kg

    Environment

    Ambient air temperature for storage-40…85 °C
    Ambient air temperature for operation-25…70 °C
    relative humidity5…95 % at 55 °C
    IP degree of protectionIP20
    Directives2014/35/EU - low voltage directive
    2014/30/EU - electromagnetic compatibility
    2014/34/EU - ATEX directive
    product certificationsCE
    UL
    CSA
    RCM
    EAC
    Merchant Navy
    ATEX zone 2/22
    IECEx zone 2/22
    Safety certification non interfering type 1
    standardsEN/IEC 61131-2
    EN/IEC 61010-2-201
    UL 61010-2-201
    CSA C22.2 No 61010-2-201
    IACS E10
    EN/IEC 61000-6-5, interface type 1 and type 2
    EN/IEC 61850-3, location G
    EN/IEC 60079-0
    environmental characteristicGas resistant class Gx conforming to ISA S71.04
    Gas resistant class 3C4 conforming to IEC 60721-3-3
    Dust resistant class 3S4 conforming to IEC 60721-3-3
    Sand resistant class 3S4 conforming to IEC 60721-3-3
    Salt resistant level 2 conforming to IEC 68252
    Mold growth resistant class 3B2 conforming to IEC 60721-3-3
    Fungal spore resistant class 3B2 conforming to IEC 60721-3-3
    Hazardous location class I division 2
    operating altitude0...2000 m
    2000 m...5000 m with derating factor
    Vibration resistance3 gn
    local signalling1 LED (green/red) for cyber security (SEC)
    1 LED (yellow) for serial communication (SER COM)
    1 LED (red) for download in progress (DL)
    1 LED (red) for processor or system fault (ERR)
    1 LED (red) for memory card fault (CARD ERR)
    1 LED (green/red) for status of Ethernet network (ETH STS)
    1 LED (green) for processor running (RUN)
