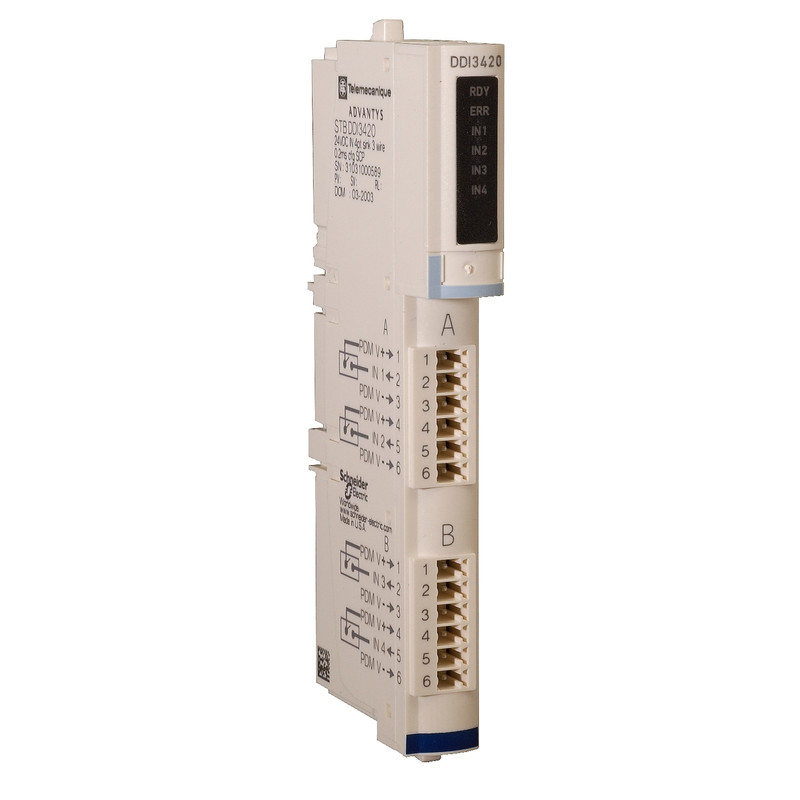

Schneider PLC Modicon STB_ standard digital input kit STB - 24 V DC - 4 I_ [STBDDI3420K]

Industrial Automation / PLC / Modular PLC

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

Standard digital input kit STB - 24 V DC - 4 I

Main

Range of product	Modicon STB distributed I/O solution
Product or component type	Standard digital input kit
Kit composition	STBXTS2100, 6-terminal spring clamp connector STBDDI3420 module STBXTS1100, 6-terminal screw type connector STBXBA1000 base
Discrete input number	4
Discrete input voltage	24 V
Discrete input voltage type	DC

Complementary

input voltage limits	11...30 V at state 1 -3...5 V at state 0
Permissible voltage	30 V
absolute maximum voltage	56 V 1.3 ms
Discrete input current	8 mA
Current state 0 guaranteed	<= 1.2 mA
Current state 1 guaranteed	>= 2.5 mA
Discrete input logic	Positive or negative
response time	0.925 ms off-to-on 0.5 ms 1.35 ms on-to-off 0.5 ms
protection type	Power protection integrated fuse on PDM time lag 10 A Input protection resistor-limited Reverse polarity protection
Insulation between channels and logic bus	1500 V for 1 minute
Cold swapping	Yes
hot swapping	Yes for standard NIMs
input filtering	1 ms 2 ms 4 ms 8 ms 0.5 ms 16 ms +/- 0.25 ms
Current supplied by sensor	100 mA per channel
Product compatibility	I/O base STBXBA1000 Power distribution module STBPDT3100/3105
[Us] rated supply voltage	24 V DC
Supply	Power distribution module
current consumption	45 mA at 5 V DC for logic bus
Marking	CE
Overvoltage category	II
status LED	1 LED (green) module status (RDY) 1 LED per channel (green) channel status (IN1 to IN4) 1 LED (red) module error (ERR)
Depth	65.1 mm
Height	18.4 mm
Width	125 mm
Net weight	0.111 kg

Environment

Standards	EN/IEC 61131-2type 1+
Product certifications	CSA FM Class 1 Division 2 UL
pollution degree	2 conforming to IEC 60664-1
Operating altitude	<= 2000 m
IP degree of protection	IP20 conforming to EN 61131-2 class 1
ambient air temperature for operation	-25…70 °C (without derating)
ambient air temperature for operation	32...140 °F without derating
ambient air temperature for storage	-40…85 °C without derating
ambient air temperature for storage	-40...185 °F without derating
relative humidity	95 % at 60 °C without condensation
vibration resistance	3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail +/-0.35 mm at 10…58 Hz
shock resistance	30 gn for 11 ms conforming to IEC 88 reference 2-27
