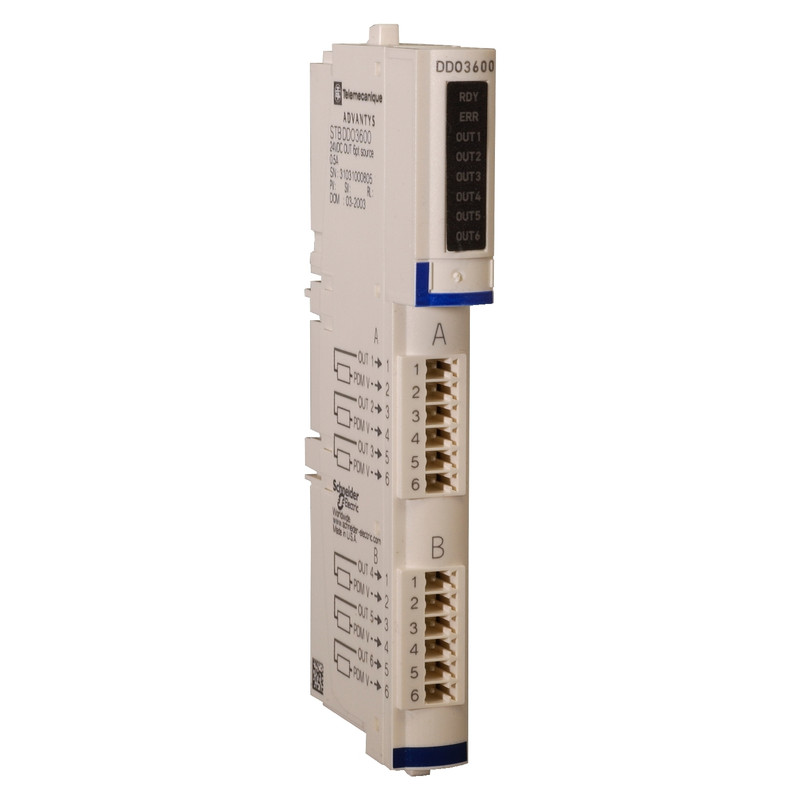

Schneider PLC Modicon STB_ standard digital output kit STB - 24 V DC - 6 O_ [STBDDO3600K]
Industrial Automation / PLC / Modular PLC
This product is Partsof the Modicon STB range, an offer of modular distributed I/O. This standard discrete output kit has 6 discrete outputs with solid state relay. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 90mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.114kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA1000. The kit includes STBXBA1000 base, STBDDO3600 module, STBXTS2100, 6-terminal spring clamp connector and STBXTS1100, 6-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a Partsof flexible machine control approach, a key component of MachineStruxure._ [STBDDO3600K]
Specifications
Main
| Range of product | Modicon STB distributed I/O solution |
|---|---|
| Product or component type | Standard digital output kit |
| Kit composition | STBXBA1000 base STBDDO3600 module STBXTS2100, 6-terminal spring clamp connector STBXTS1100, 6-terminal screw type connector |
| Discrete output number | 6 |
| Discrete output type | Solid state |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
Complementary
| discrete output current | 500 mA |
|---|---|
| Discrete output logic | Positive or negative |
| output voltage | 19.2...30 V DC |
| absolute maximum voltage | 56 V 1.3 ms |
| response time | 715 µs off-to-on 955 µs on-to-off |
| Cold swapping | Yes |
| hot swapping | Yes for standard NIMs |
| fallback | State 0 basic NIMs User configurable standard NIMs |
| protection type | Power protection integrated fuse on PDM time lag 10 A Reverse polarity protection Short-circuit protection Thermal overload protection |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| maximum leakage current | 0.4 mA at state 0 30 V |
| surge current | 5 A 0.5 ms |
| Maximum load capacitance | 50 µF |
| maximum load inductance | 500 mH at 4 Hz |
| Minimum load | 0.5 mA |
| reset | Manual reset COM fault |
| Product compatibility | Power distribution module STBPDT3100/3105 I/O base STBXBA1000 |
| [Us] rated supply voltage | 24 V DC |
| Supply | Power distribution module |
| current consumption | 90 mA at 5 V DC for logic bus |
| Marking | CE |
| Overvoltage category | II |
| status LED | 1 LED (green) module status (RDY) 1 LED per channel (green) channel status (OUT1 to OUT6) 1 LED (red) module error (ERR) |
| Height | 13.9 mm |
| Depth | 70 mm |
| Width | 128.3 mm |
| Net weight | 0.114 kg |
Environment
| Standards | EN/IEC 61131-2 |
|---|---|
| Product certifications | CSA UL FM Class 1 Division 2 |
| pollution degree | 2 conforming to IEC 60664-1 |
| Operating altitude | <= 2000 m |
| IP degree of protection | IP20 conforming to EN 61131-2 class 1 |
| ambient air temperature for operation | 0…60 °C (without derating) |
| ambient air temperature for operation | 32...140 °F without derating |
| ambient air temperature for storage | -40…85 °C without derating |
| ambient air temperature for storage | -40...185 °F without derating |
| relative humidity | 95 % at 60 °C without condensation |
| vibration resistance | 3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail +/-0.35 mm at 10…58 Hz |
| shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
