Schneider PLC Modicon STB_ standard Network Interface Module STB - Profibus DP - 9.6 kbit/s_ [STBNDP2212]

Schneider PLC Modicon STB_ standard Network Interface Module STB - Profibus DP - 9.6 kbit/s_ [STBNDP2212]

https://www.hsedubai.com/web/image/product.template/50009/image_1920?unique=29e3b48

Industrial Automation / PLC / Modular PLC

2,875.00 AED 2875.0 AED 2,875.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

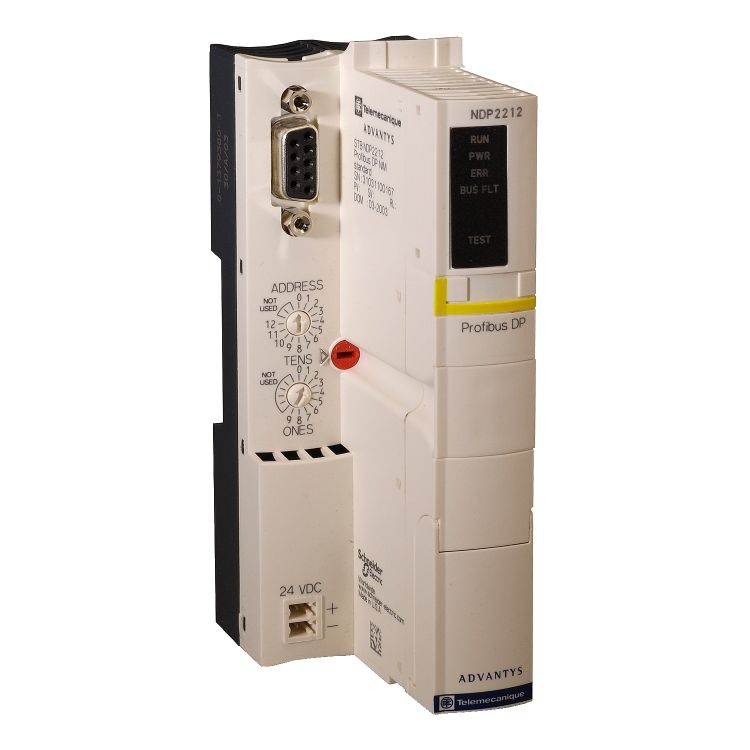

    This product is Partsof the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 125 slaves with 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are diagnostics, read/write DP slave I/O data etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, ATEX, UL, C-Tick and CSA._ [STBNDP2212]

    Specifications

    Main

    Range of productModicon STB distributed I/O solution
    Product or component typeStandard Network Interface Module
    integrated connection typeProfibus DP conforming to DIN 19245 part 1 and 3 9-way female RS485 SUB-D 1 twisted shielded pair (bus)
    Profibus DP conforming to DIN 19245 part 1 and 3 HE-13 (RS232 port)
    Profibus DP conforming to DIN 19245 part 1 and 3 8-way female (RS232 port)
    Number of segments1 primary, maximum 6 extensions
    Number of slave125
    transmission rate12 Mbit/s for bus length of 0…800 m with 3 repeaters
    9.6 kbit/s for bus length of 0…4800 m with 3 repeaters
    12 Mbit/s for bus length of 0…200 m
    9.6 kbit/s for bus length of 0…1200 m
    Structure typeIndustrial field bus DP V.0

    Complementary

    number of addressable I/O module0…32 per island
    Communication serviceDiagnostics
    Read/write DP slave I/O data
    Configuration control
    Slave configuration
    [Us] rated supply voltage24 V DC
    Power supply typeSELV
    Maximum supply current700 A
    Supply voltage limits19.2…30 V
    input current430 mA for supply circuit
    nominal output current0.575 A at 60…70 °C
    1.2 A
    maximum output impedance0.05 Ohm at 100000 kHz
    output voltage5.25 V DC (tolerance: +/- 0.21 %) for logic bus
    MarkingCE
    Overvoltage categoryII
    status LED1 LED (green) BUSFLT
    1 LED (green) island state (RUN)
    1 LED (green) power supply (PWR)
    1 LED (red) module error (ERR)
    1 LED (yellow) test mode
    Depth70 mm
    Height40 mm
    Width128.3 mm

    Environment

    electromagnetic compatibilityImmunity to electromagnetic interference conforming to IEC 61131-2
    Product certificationsC-Tick
    CSA
    ATEX Cat 3G
    FM Class 1 Division 2
    UL
    pollution degree2 conforming to IEC 60664-1
    Operating altitude<= 2000 m
    IP degree of protectionIP20 conforming to EN 61131-2 class 1
    ambient air temperature for operation0…60 °C (without derating)
    -25…70 °C (with derating factor)
    Ambient air temperature for storage-40…85 °C
    relative humidity95 % at 60 °C without condensation
    vibration resistance3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail
    5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail
    +/-0.35 mm at 10…58 Hz
    shock resistance30 gn for 11 ms conforming to IEC 88 reference 2-27
