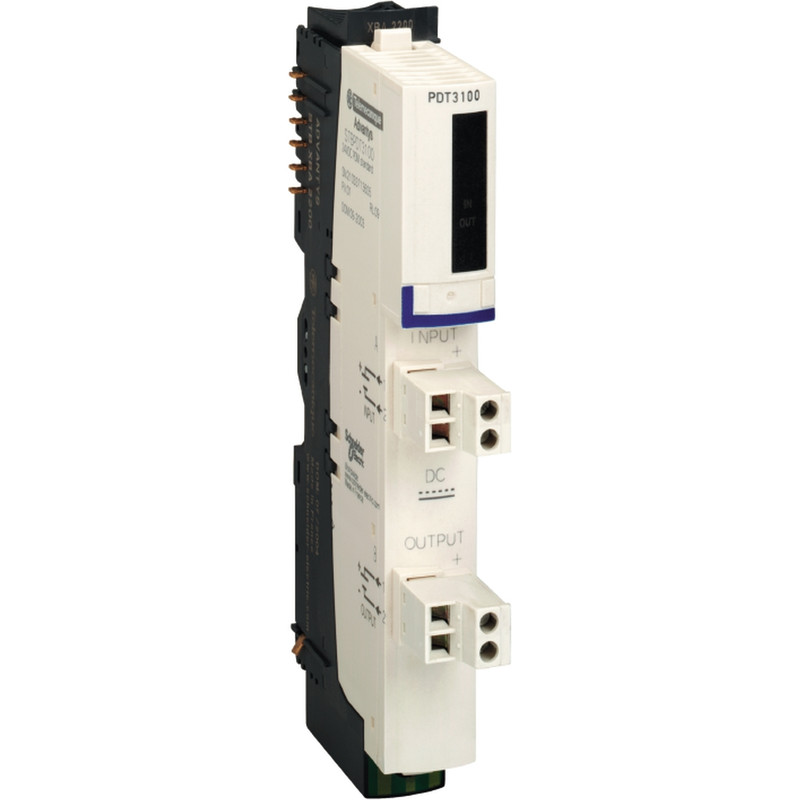

Schneider PLC Modicon STB_ standard power distribution kit STB - 24 V DC_ [STBPDT3100K]
Industrial Automation / PLC / Modular PLC
This product is Partsof the Modicon STB range, an offer of modular distributed I/O. This standard power distribution kit supports hot swapping illegal fallback. This product is compatible with most major fieldbus networks. It allows 30A permissible current for 2 minutes grounding terminal. The voltage detection threshold is <15V ±1 DC IN/OUT LED lit and ≥15V ±1 DC IN/OUT LED non lit. It is an IP20 rated product. Its dimensions are 18.4mm (width) x 65.1mm (depth) x 125mm (height) and weighs 0.13kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with mounting base STBXBA2200. The kit includes STBXTS2130, spring type connectors, STBPDT2100 module, STBXBA2200 base and STBXTS1130 screw type connectors. It supports STBXBA2200 mounting base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a Partsof flexible machine control approach, a key component of MachineStruxure._ [STBPDT3100K]
Specifications
Main
| Range of product | Modicon STB distributed I/O solution |
|---|---|
| Product or component type | Standard power distribution kit |
Complementary
| Kit composition | STBXTS2130, spring type connectors STBPDT3100 module STBXBA2200 base STBXTS1130, screw type connectors |
|---|---|
| [Us] rated supply voltage | 24 V |
| Supply circuit type | DC |
| power supply output current | 10 A at 45 °C (input/output circuit) 12 A at 30 °C (input/output circuit) 6 A at 70 °C (input/output circuit) 8 A at 60 °C (input/output circuit) 0…4 A at 30 °C (input circuit) 0…8 A at 30 °C (output circuit) |
| voltage range | 19.2...30 V DC sensor/actuator bus |
| Hot swapping fallback | Hot swapping illegal |
| protection type | Built-in overcurrent protection, 10 A time-lag fuse for output circuit Built-in overcurrent protection, 5 A time-lag fuse for input circuit Reverse polarity for actuator bus |
| permissible current | 30 A for 2 minutes grounding terminal |
| voltage detection threshold | < 15 V +/-1 DC IN/OUT LED lit >= 15 V +/-1 DC IN/OUT LED non lit |
| Product compatibility | Mounting base STBXBA2200 |
| Marking | CE |
| Overvoltage category | II |
| status LED | 1 LED (green) actuator bus power supply (OUT) 1 LED (green) sensor bus power supply (IN) |
| Depth | 65.1 mm |
| Height | 125 mm |
| Width | 18.4 mm |
| Net weight | 0.13 kg |
Environment
| Product certifications | UL FM Class 1 Division 2 CSA |
|---|---|
| pollution degree | 2 conforming to IEC 60664-1 |
| Operating altitude | <= 2000 m |
| IP degree of protection | IP20 conforming to EN 61131-2 class 1 |
| ambient air temperature for operation | 0…60 °C (without) -25…70 °C (with derating factor) |
| Ambient air temperature for storage | -40…85 °C |
| relative humidity | 95 % at 60 °C without condensation |
| vibration resistance | +/-0.35 mm at 10…58 Hz 3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail 5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail |
| shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
