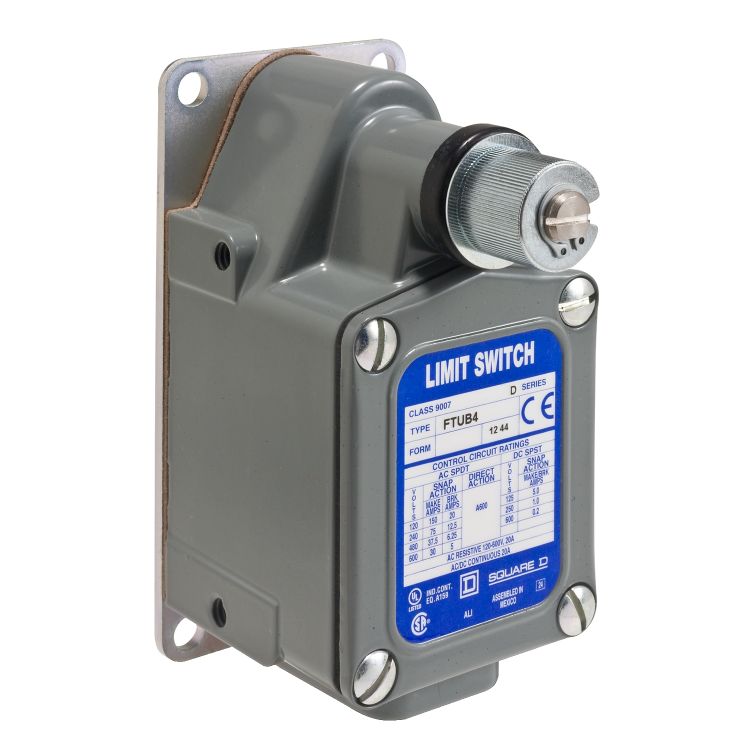

This product is Partsof the Nema Limit Switches range, an offer of heavy duty metal limit switches. The limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 normally closed + 1 normally opened, SPDT-DB (single pole double throw, double break) form Z, snap action contacts. The spring return mechanism without operating lever supports a lateral approach and switch actuation from CW and CCW, left or right. It is furnished with screw clamp terminals for electrical connection. It is a safety switch with a conventional enclosed thermal current of 20A. It is an IP67 and NEMA 1/2/4/12/13 rated product. This NEMA limit switch has fixed body made of metal. Its dimensions are 57.15mm (width) x 86.61mm (depth) x 118.36mm (height) and weighs 1.13kg. It is suitable for use in mill and foundry, iron and steel, cement and glass applications. It is also used in material handling, conveyance, carousels and automatic storage/retrieval applications. This product is certified by UL and CSA. It complies with UL 508, NEMA A600, IEC 609470-1 and C22-2-14 standards. Foundry switch is suitable for severe duty applications, convertible sequences and 59mm housing. Extended operating and reset forces and heavy-duty contacts that will break 20A AC/DC. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry. This constitutes a comprehensive range of limit switches rigged and dependable built with unparalleled quality._ [9007FTSB1M11]

Specifications

Main

Range of product9007
Series nameSevere duty foundry
Product or component typeLimit switch
Device applicationStandard foundry switch
Device short name9007T/FT
Body typeFixed
Head typeRotary head
Sale per indivisible quantity1

Complementary

Base plate styleStyle B
Body materialCast zinc
Fixing modeBy the body
Movement of operating headRotary
Type of operatorSpring return without operating lever
Contact sequence number1
Function available-
Switch actuationFrom left or right
CW and CCW
Type of approachLateral approach
electrical connectionScrew-clamp terminals AWG 22...AWG 12
cable entry1 entry for M20 - 20 mm conforming to BS 4568
Number of poles1
Switch functionSPDT-DB
Contact formForm Z
Contact operationSnap action
Contacts usage-
Contacts materialSilver flashed copper
Positive openingWithout
Minimum torque for tripping1.13 N.m
maximum actuation speed130 ft/min with 30° cam angle, levers only
90 ft/min with 45° cam angle, levers only
tripping angle14 °
Maximum displacement angle89 °
repeat accuracy+/- 0.004 in linear travel of cam on 1.5 in lever arm
contact code designationA600, AC (Ue = 600 V) Ie = 5 A conforming to NEMA rating designation
A600, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation
A600, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation
A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation
P600, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation
P600, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation
P600, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation
[Ithe] conventional enclosed thermal current20 A
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 609470-1
600 V (pollution degree 3) conforming to UL 508
600 V (pollution degree 3) conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage2.5 kV AC for 1 minute conforming to CE
2.2 kV AC for 1 minute conforming to UL
2.64 kV AC for 1 minute conforming to CSA
short-circuit protection20 A Bussmann class CC KTK-R-21 fuse, type non-time delay
Width57.15 mm
Height118.36 mm
Depth86.61 mm
Net weight1.13 kg
Terminals description ISO n°1B (right side contact)
A (left side contact)

Environment

shock resistance30 gn for 9 ms conforming to IEC 60068-2-27
vibration resistance10 gn (f= 10…55 Hz) conforming to IEC 60068-2-6
NEMA degree of protectionNEMA 1 conforming to Nema type 250
NEMA 2 conforming to Nema type 250
NEMA 4 conforming to Nema type 250
NEMA 12 conforming to Nema type 250
NEMA 13 conforming to Nema type 250
IP degree of protectionIP67 conforming to IEC 60529
electrical shock protection classClass 0 conforming to IEC 61140
Ambient air temperature for operation-23…85 °C
Ambient air temperature for storage-23…85 °C
Protective treatmentCorrosion resistant gray paint
