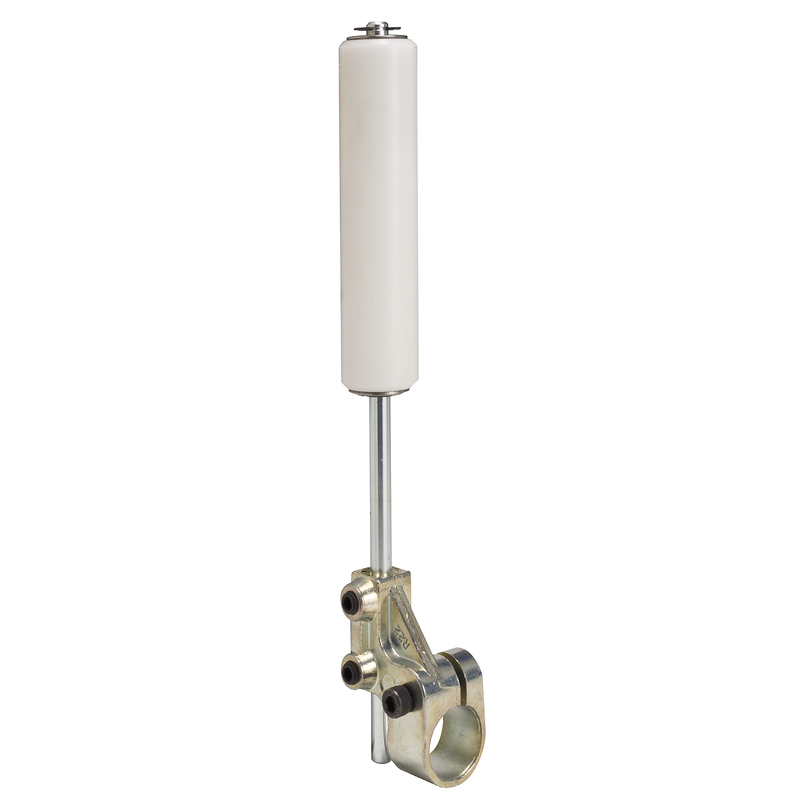

Schneider Sensors Nema Limit Switches_ Limit switch lever, 9007, arm t+ft+options_ [9007R22]

This product is Partsof the Nema Limit Switches range. This limit switch lever has a spring return vertical roller operator and provides a lateral approach without positive opening operation. The switch lever with a rotary movement and switching actuation by conveying belt. This roller lever has spring return operator made of cast zinc. Its dimensions are 22.35mm (diameter) x 95.25mm (width). The lever length is 214.38mm. It weighs 0.05kg. It is associated with complete products such as 9007T, 9007CXXS9 and 9007FT. The associated heads are 9007NS9, 9007CS9, 9007T5S9, 9007BS9, 9007AS9 and 9007T10S9. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options._ [9007R22]
