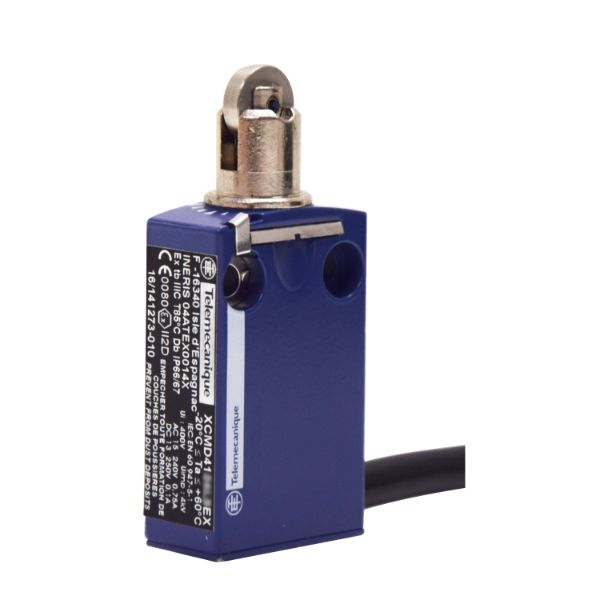

Schneider Sensors OsiSense XC Standard_ Limit switch, Limit switches XC Standard, XCMD, roller plunger, 2NC + 2 NO, ATEX/IECEx_ [XCMD4102L5EX]

This product is Partsof the ATEX D Standard range, an offer of limit switches for explosive atmospheres. The limit switch is a device that converts a mechanical motion into an electrical control signal. It has 2 normally closed + 2 normally opened, snap action contacts with positive opening operation. It is a limit switch with a conventional enclosed thermal current of 3A and a rated insulation voltage of 300V. It is furnished with a fixed cable connector for electrical connection. It is an IP66 and IP67 rated product. It has a spring return roller plunger, switch actuation by 30° cam. It offers long mechanical and electrical life, the mechanical durability is about 10 million operating cycles and electrical durability is 5 million operating cycles. This plunger head limit switch is made of Zamak. Its dimensions are 30mm (Width) x 16mm (Depth) x 50mm (Height). It is intended used for certified explosive hazardous dust location applications. This product is certified by INERIS 04ATEX0014X and IEC-Ex INE 17.0020X. It meets EN/IEC 60079-31 and EN/IEC 60079-0 standards._ [XCMD4102L5EX]
