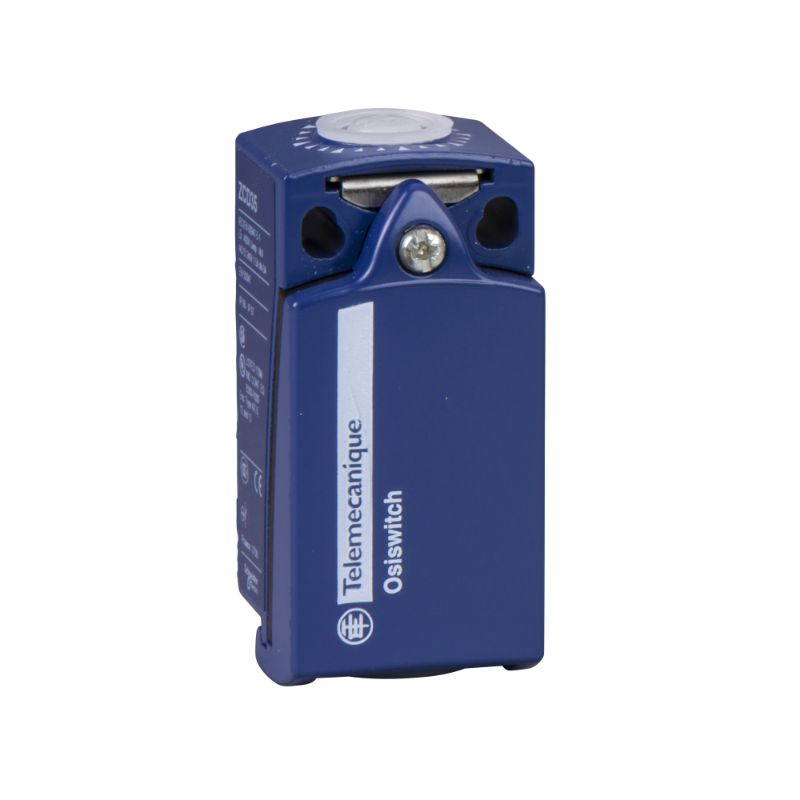

Schneider Sensors OsiSense XC Standard_ limit switch body ZCD - compact - 1NC+2NO - snap action_ [ZCD31]

This product is Partsof the XC Standard range, an offer of limit switches. This body is main Partsof limit switch, contains the electrical contact mechanism. It has 1 normally closed + 2 normally opened, snap action contacts with positive opening operation. It is a limit switch body with a rated operational current of 0.75A at 240V AC and 0.1A at 250V AC. It is furnished with screw clamp terminals for electrical connection. It offers long electrical durability of about 5 million operating cycles. This limit switch body is in fixed type which is made of Zamak. Its dimensions are 31mm (width) x 30mm (depth) x 65mm (height). It is intended for all industrial machine application such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKD limit switches. It is associated with ZCE65, ZCE02, ZCE27, ZCE14, ZCE06, ZCE66, ZCE63, ZCE21, ZCE13, ZCE05, ZCE28, ZCE01, ZCE64, ZCE11, ZCE10, ZCEH2, ZCE62, ZCE08, ZCE07, ZCE29 and ZCE09 heads. European standard products (EN 50047) have positive opening contacts, even in snap action versions which allow use in safety applications._ [ZCD31]
