Schneider Sensors OsiSense XC_ Limit switch, Limit switches XC Standard, XCKJ, thermoplastic plastic roller lever var. length, 1NC+1 NO, snap, M20_ [XCKJ10541H29]

Schneider Sensors OsiSense XC_ Limit switch, Limit switches XC Standard, XCKJ, thermoplastic plastic roller lever var. length, 1NC+1 NO, snap, M20_ [XCKJ10541H29]

https://www.hsedubai.com/web/image/product.template/51551/image_1920?unique=29e3b48

Industrial Automation / Sensor / Limit Switch

234.00 AED 234.0 AED 234.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

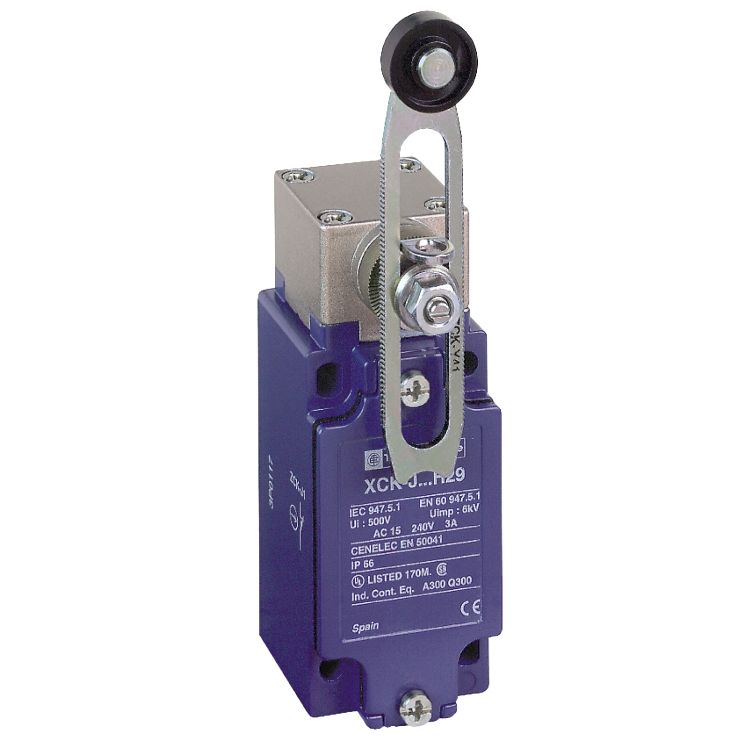

    This XCKJ industrial format (EN 50041) limit switch has a thermoplastic variable-length roller lever and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and an industrial CENELEC EN50041 form A format. It is IP66 and IK07 impact-resistant, making it ideal for heavy-duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles of electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV, EAC standards. Compatible with the well-distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example, change of connection type or head._ [XCKJ10541H29]

    Specifications

    Main

    Range of productTelemecanique Limit switches XC Standard
    Series nameStandard format
    Product or component typeLimit switch
    Device short nameXCKJ
    sensor design-
    Body typeFixed
    Head typeRotary head
    MaterialMetal
    Body materialZamak
    Head materialZamak
    Fixing modeBy the body
    Movement of operating headRotary
    type of operatorSpring return roller lever thermoplastic variable length
    type of approachLateral approach, 1 or 2 programmable direction
    cable entry1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7…13 mm
    Number of poles2
    Contacts type and composition1 NC + 1 NO
    Contact operationSnap action
    Complementary
    Switch actuationBy 30° cam
    electrical connectionScrew-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
    Contacts insulation formZb
    Number of steps1
    Positive openingWithout
    Minimum torque for tripping0.25 N.m
    maximum actuation speed1.5 m/s
    [Ie] rated operational current3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
    0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
    [Ithe] conventional enclosed thermal current10 A
    [Ui] rated insulation voltage300 V conforming to UL 508
    500 V (pollution degree 3) conforming to IEC 60947-1
    300 V conforming to CSA C22.2 No 14
    maximum resistance across terminals25 MOhm conforming to IEC 60255-7 category 3
    [Uimp] rated impulse withstand voltage6 kV conforming to IEC 60664
    6 kV conforming to IEC 60947-1
    short-circuit protection10 A cartridge fuse, type gG
    electrical durability5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
    5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
    5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
    Mechanical durability30000000 cycles
    Width40 mm
    Height77 mm
    Depth44 mm
    Net weight0.485 kg
    Terminals description ISO n°1(13-14)NO
    (21-22)NC
    Environment
    shock resistance50 gn for 11 ms conforming to IEC 60068-2-27
    vibration resistance25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
    IP degree of protectionIP66 conforming to IEC 60529
    IK degree of protectionIK07 conforming to EN 50102
    overvoltage categoryClass I conforming to IEC 61140
    Class I conforming to NF C 20-030
    Ambient air temperature for operation-25…70 °C
    Ambient air temperature for storage-40…70 °C
    Protective treatmentTH
    Product certificationsUL
    CCC
    CSA
    StandardsUL 508
    CENELEC EN 50041
    IEC 60204-1
    IEC 60947-5-1
    EN 60947-5-1
    EN 60204-1
    CSA C22.2 No 14
