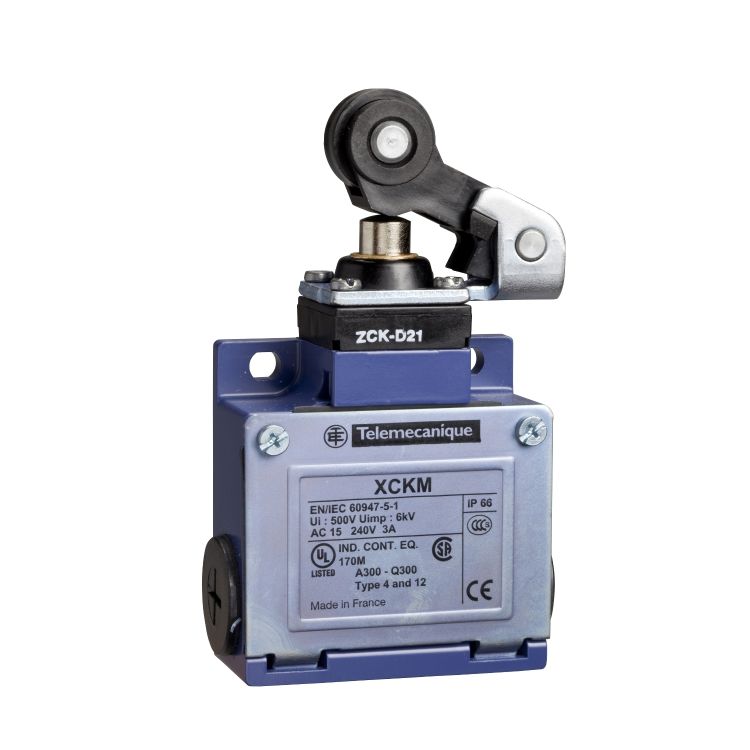

    This XCKM classic format limit switch has a steel roller lever plunger with horizontal actuation and a Zamak body. This limit switch has a robust Zamak body, 3 cable entries, a modular design allowing easier maintenance and a classic format. It is IP66 and IK05 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head._ [XCKM121]

    Specifications

    Main

    Range of productTelemecanique Limit switches XC Standard
    Series nameStandard format
    Product or component typeLimit switch
    Device short nameXCKM
    Body typeFixed
    Head typePlunger head
    MaterialMetal
    Body materialZamak
    Fixing modeBy the body
    Movement of operating headLinear
    type of operatorSpring return roller lever plunger thermoplastic
    type of approachLateral approach, 1 direction
    cable entry3 entries tapped for Pg 11 cable gland
    Number of poles2
    Contacts type and composition1 NC + 1 NO
    Contact operationSnap action

    Complementary

    Switch actuationBy 30° cam
    electrical connectionScrew-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
    Contacts insulation formZb
    number of steps1
    Positive openingWith
    Positive opening minimum force24 N
    Minimum force for tripping8 N
    Minimum actuation speed0.01 m/min
    maximum actuation speed1.5 m/s
    contact code designationA300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A
    Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
    [Ithe] conventional enclosed thermal current10 A AC
    [Ui] rated insulation voltage300 V conforming to UL 508
    500 V (pollution degree 3) conforming to IEC 60947-1
    300 V conforming to CSA C22.2 No 14
    maximum resistance across terminals25 MOhm conforming to IEC 60255-7 category 3
    [Uimp] rated impulse withstand voltage6 kV conforming to IEC 60664
    6 kV conforming to IEC 60947-1
    short-circuit protection10 A cartridge fuse, type gG
    electrical durability5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
    5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
    5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
    Mechanical durability20000000 cycles
    Width64 mm
    Height64 mm
    Depth30 mm
    Net weight0.3 kg
    Terminals description ISO n°1(21-22)NC
    (13-14)NO

    Environment

    shock resistance50 gn for 11 ms conforming to EN/IEC 60068-2-27
    vibration resistance25 gn (f= 10…500 Hz) conforming to EN/IEC 60068-2-6
    IP degree of protectionIP66 conforming to EN/IEC 60529
    IK degree of protectionIK05 conforming to EN 50102
    electrical shock protection classClass I conforming to IEC 61140
    Class I conforming to NF C 20-030
    Ambient air temperature for operation-25…70 °C
    Ambient air temperature for storage-40…70 °C
    Protective treatmentTC
    Product certificationsCCC
    UL
    CSA
    StandardsCSA C22.2 No 14
    IEC 60204-1
    UL 508
    IEC 60947-5-1
    EN 60947-5-1
    EN 60204-1
