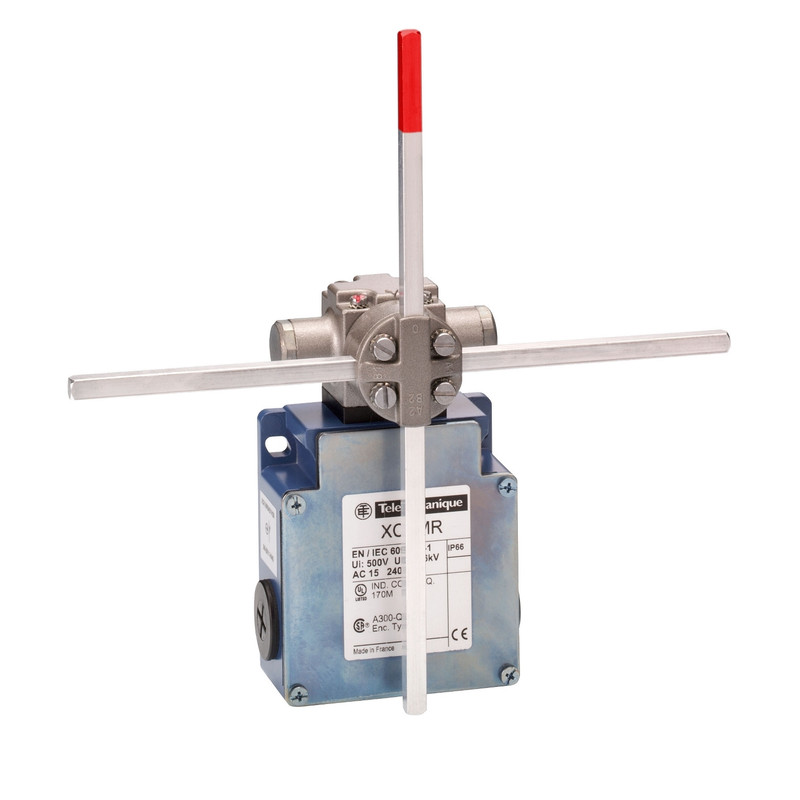

Schneider Sensors OsiSense XC_ limit switch XCKMR - stay put crossed rods lever 6mm - 2x(2 NC) - slow - Pg13_ [XCKMR54D1]
Industrial Automation / Sensor / Limit Switch
This product is Partsof the XC Special range, an offer of limit switches. The limit switch is a device that converts a mechanical motion into an electrical control signal. It has 2 x (2 normally closed), slow-break, staggered contacts with positive opening operation. It is a safety switch with a rated operational current of 3A at 240V, 0.55A at 125V and a conventional enclosed thermal current of 10A. It is furnished with screw clamp terminals for electrical connection. It is an IP66 and IK07 rated product. It offers long mechanical life with a mechanical durability of about 2 million operating cycles. This rotary head limit switch has a fixed type body which is made of Zamak. Its dimensions are 200mm (width) x 59mm (depth) x 118mm (height) and weighs 0.55kg. It is suitable for hoisting handling, mining minerals metals and all others strong environmental constraints (foundry, welding automotive industries) applications etc. This product is certified by UL, CSA, CE and CCC. It complies with UL 508, EN/IEC 60947-5-1 and CSA C22.2 No 14 standards. Complete unit with 3 cable entries and positive opening contacts, one per position. This special limit switch is dedicated to severe environments and heavy duty service._ [XCKMR54D1]
Specifications
Main
| Range of product | OsiSense XC |
|---|---|
| Series name | Special format |
| Product or component type | Limit switch |
| Product specific application | For hoisting and mechanical handling applications |
| Device short name | XCKMR |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| type of operator | Stay put crossed rods lever metal square rod 6 mm, L = 200 mm |
| type of approach | Lateral approach, 2 directions |
| cable entry | 3 entries tapped for Pg 13.5 cable gland, cable outer diameter: 9…12 mm |
| Number of poles | 4 |
| Contacts type and composition | 2 x (2 NC) |
| Contact operation | Slow-break, staggered |
| Switch actuation | By any moving part |
|---|---|
| electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contacts insulation form | Zb |
| number of steps | 5 electrical positions |
| Contact block per direction [control circuit] | 1 per direction |
| Positive opening | With |
| Positive opening minimum torque | 0.75 N.m |
| Minimum torque for tripping | 0.5 N.m |
| Minimum actuation speed | 6 m/min |
| maximum actuation speed | 1.5 m/s actuation point on the rod between 65 and 95 mm |
| Maximum displacement angle | -180 ° 180 ° |
| contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A Q150, DC-13 (Ue = 125 V), Ie = 0.55 A conforming to EN/IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14 500 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60664 6 kV conforming to EN/IEC 60947-1 |
| short-circuit protection | 10 A cartridge fuse, type gG |
| Mechanical durability | 2000000 cycles |
| Width | 200 mm |
| Height | 118 mm |
| Depth | 59 mm |
| Net weight | 0.55 kg |
| Terminals description ISO n°1 | (11-12)NC (21-22)NC |
| shock resistance | 50 gn conforming to EN/IEC 60068-2-27 |
|---|---|
| vibration resistance | 25 gn (f= 10…500 Hz) conforming to EN/IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to EN/IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| electrical shock protection class | Class I conforming to IEC 60536 |
| Ambient air temperature for operation | -40…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Protective treatment | TC |
| Product certifications | UL CCC CSA CE |
| Standards | EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14 |
