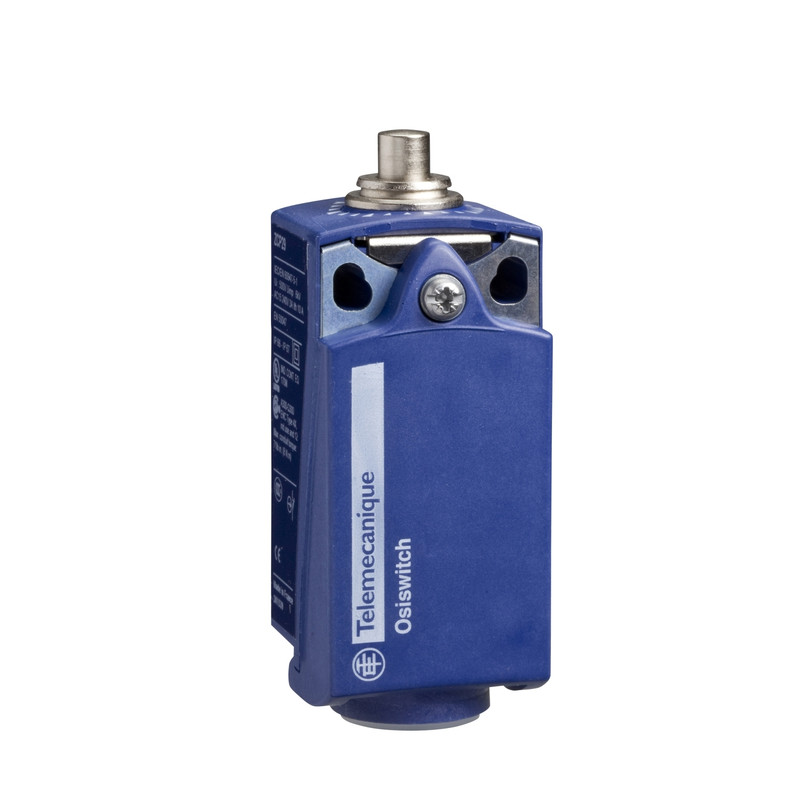

Schneider Sensors OsiSense XC_ limit switch XCKP - metal end plunger - 1NC+1NO - snap - Pg11_ [XCKP2110G11]
Industrial Automation / Sensor / Limit Switch
This XCKP compact format (CENELEC EN 50047) limit switch has a metal end plunger and a plastic body. This limit switch has a double-insulated thermoplastic body, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is IP66 and IK04 impact-resistant, making it ideal for heavy-duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well-distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head._ [XCKP2110G11]
Specifications
Main
Range of product | Telemecanique Limit switches XC Standard |
---|---|
Series name | Standard format |
Product or component type | Limit switch |
Device short name | XCKP |
sensor design | Compact form B conforming to CENELEC EN 50047 |
Body type | Fixed |
Head type | Plunger head |
Material | Plastic |
Body material | Plastic |
Head material | Zamak |
Fixing mode | By the body |
Movement of operating head | Linear |
type of operator | Spring return plunger metal |
type of approach | Vertical approach, 1 direction |
Number of poles | 2 |
Contacts type and composition | 1 NC + 1 NO |
Contact operation | Snap action |
Complementary
Switch actuation | On end |
---|---|
electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
cable entry | 1 entry tapped for Pg 11 cable gland |
Contacts insulation form | Zb |
Positive opening | With |
Positive opening minimum force | 45 N |
Minimum force for tripping | 15 N |
Minimum actuation speed | 0.01 m/min |
maximum actuation speed | 0.5 m/s |
repeat accuracy | 0.1 mm on the tripping points with 1 million operating cycles |
contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A |
[Ui] rated insulation voltage | 300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
[Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60664 6 kV conforming to IEC 60947-1 |
short-circuit protection | 10 A cartridge fuse, type gG |
electrical durability | 5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
Mechanical durability | 15000000 cycles |
Width | 31 mm |
Height | 65 mm |
Depth | 30 mm |
Net weight | 0.09 kg |
Terminals description ISO n°1 | (13-14)NO (21-22)NC |
Environment
shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
---|---|
vibration resistance | 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
IP degree of protection | IP66 conforming to IEC 60529 IP67 conforming to IEC 60529 |
IK degree of protection | IK04 conforming to EN 50102 |
electrical shock protection class | Class II conforming to IEC 61140 Class II conforming to NF C 20-030 |
Ambient air temperature for operation | -25…70 °C |
Ambient air temperature for storage | -40…70 °C |
Protective treatment | TC |
Product certifications | CSA UL CCC |
Standards | EN 60947-5-1 CSA C22.2 No 14 IEC 60947-5-1 EN 60204-1 IEC 60204-1 UL 508 |
