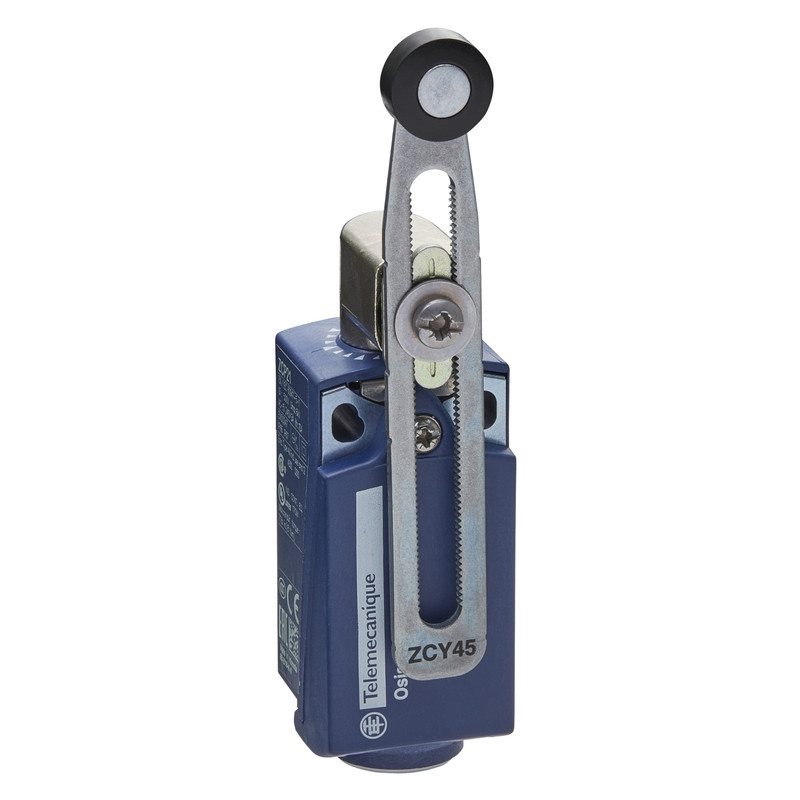

    This XCKP compact format (CENELEC EN 50047) limit switch has a thermoplastic variable length roller lever and a plastic body. This limit switch has a double insulated thermoplastic body, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is IP66 and IK04 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head._ [XCKP2145P16]

    Specifications

    Main

    Range of productTelemecanique Limit switches XC Standard
    Series nameStandard format
    Product or component typeLimit switch
    Device short nameXCKP
    sensor designCompact
    Body typeFixed
    Head typeRotary head
    MaterialPlastic
    Body materialPlastic
    Head materialZamak
    Fixing modeBy the body
    Movement of operating headRotary
    type of operatorSpring return roller lever thermoplastic variable length
    type of approachLateral approach, 2 directions
    Number of poles2
    Contacts type and composition1 NC + 1 NO
    Contact operationSnap action

    Complementary

    Switch actuationBy 30° cam
    electrical connectionScrew-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
    cable entry1 entry tapped for M16 x 1.5 cable gland, cable outer diameter: 4…8 mm
    Contacts insulation formZb
    Positive openingWith
    Positive opening minimum torque0.25 N.m
    Minimum torque for tripping0.1 N.m
    maximum actuation speed1.5 m/s
    repeat accuracy0.1 mm on the tripping points with 1 million operating cycles
    contact code designationA300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A
    Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
    [Ui] rated insulation voltage300 V conforming to UL 508
    500 V (pollution degree 3) conforming to IEC 60947-1
    300 V conforming to CSA C22.2 No 14
    maximum resistance across terminals25 MOhm conforming to IEC 60255-7 category 3
    [Uimp] rated impulse withstand voltage6 kV conforming to IEC 60664
    6 kV conforming to IEC 60947-1
    short-circuit protection10 A cartridge fuse, type gG
    electrical durability5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
    5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
    5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
    Mechanical durability10000000 cycles
    Width31 mm
    Height65 mm
    Depth30 mm
    Net weight0.145 kg
    Terminals description ISO n°1(21-22)NC
    (13-14)NO

    Environment

    shock resistance50 gn for 11 ms conforming to IEC 60068-2-27
    vibration resistance25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
    IP degree of protectionIP66 conforming to IEC 60529
    IP67 conforming to IEC 60529
    IK degree of protectionIK04 conforming to EN 50102
    electrical shock protection classClass II conforming to IEC 61140
    Class II conforming to NF C 20-030
    Ambient air temperature for operation-25…70 °C
    Ambient air temperature for storage-40…70 °C
    Protective treatmentTC
    Product certificationsCSA
    UL
    CCC
    StandardsUL 508
    EN 60947-5-1
    IEC 60947-5-1
    IEC 60204-1
    EN 60204-1
    CSA C22.2 No 14
