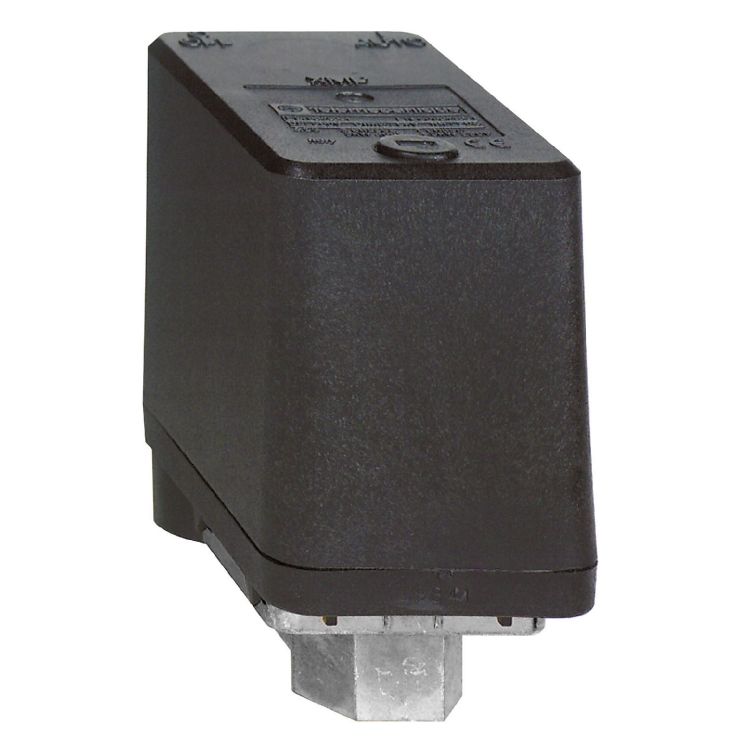

Schneider Sensors OsiSense XM_ pressure sensor XMP - 6 bar - G 1/4 female - 2 NC - without control type_ [XMPA06B2131]
Industrial Automation / Sensor / Sensor
The XMP switches are electromechanical pressure switches for control circuits. They are used to control the pressure of water and air. It is an IP54 switch with an adjustable differential for regulation between 2 thresholds, without decompression valve. It is a bare case switch, without decompression valve. Ajustable range of switching point: from 1bar to 6bar or from 14.5psi to 87psi. 2 NC contacts, G 1/4 female fluid connection, two entries tapped for n°13 cable gland._ [XMPA06B2131]
Specifications
Main
| Range of product | Telemecanique Pressure sensors XM |
|---|---|
| Pressure sensor type | Electromechanical pressure sensor |
| Pressure sensor name | XMP |
| Pressure sensor size | 6 bar |
| fluid connection type | G 1/4 (female) conforming to ISO 228 |
| controlled fluid | Air (0…70 °C) Fresh water (0…70 °C) Sea water (0…70 °C) |
| cable entry | 2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300 |
| contacts type and composition | 2 NC snap action |
| Product specific application | - |
| Pressure switch type of operation | Regulation between 2 thresholds |
| electrical connection | Screw-clamp terminals, clamping capacity: minimum : 2 x 4 mm² |
| Electrical circuit type | Power circuit |
| Scale type | Adjustable differential |
| Local display | Without |
| Sale per indivisible quantity | 1 |
Complementary
| Adjustable range of switching point on falling pressure | 0.2…4.8 bar |
|---|---|
| Adjustment range high setting | 1…6 bar |
| Possible differential minimum at low setting | 0.8 bar |
| Possible differential minimum at high setting | 1.2 bar |
| Possible differential maximum at high setting | 4.2 bar |
| Destruction pressure | 30 bar |
| Type of decompression valve | Without |
| Control type | Without |
| Terminal block type | 4 terminals |
| Pressure actuator | Diaphragm |
| Materials in contact with fluid | Canvas covered nitrile Chromated zinc alloy |
| Enclosure material | PA impregnated with fibreglass |
| Operating position | Any position |
| Maximum operating rate | 10 cyc/mn |
| Repeat accuracy | 3.5 % |
| [Ui] rated insulation voltage | 500 V conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-1 |
| maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 25 MOhm conforming to NF C 93-050 method A |
| electrical durability | 1000000 cycles 1.5 kW, operating rate <10 cyc/mn, load factor: 0.4, 400 V AC 3 phases 500000 cycles 3 kW, operating rate <10 cyc/mn, load factor: 0.4, 400 V AC 3 phases 600000 cycles 1.5 kW, operating rate <10 cyc/mn, load factor: 0.4, 230 V AC 3 phases 700000 cycles 2.2 kW, operating rate <10 cyc/mn, load factor: 0.4, 400 V AC 3 phases |
| Mechanical durability | 1000000 cycles |
| Setting | Nut |
| Net weight | 0.43 kg |
| Terminals description ISO n°1 | (3-4)NC (1-2)NC |
| Depth | 98 mm |
| Height | 106 mm |
| Width | 57 mm |
Environment
| Product certifications | EAC |
|---|---|
| Standards | EN/IEC 60947-4-1 CE |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| vibration resistance | 3 gn conforming to IEC 60068-2-6 (f = 10…500 Hz) |
| shock resistance | 50 gn conforming to IEC 60068-2-27 |
| electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP54 conforming to EN/IEC 60529 |
