Schneider Sensors Osisense XS & XT_ inductive sensor XS7 40x40x117 - PBT - Sn15 mm - 24..240VAC/DC - terminals
Industrial Automation / Sensor / Sensor

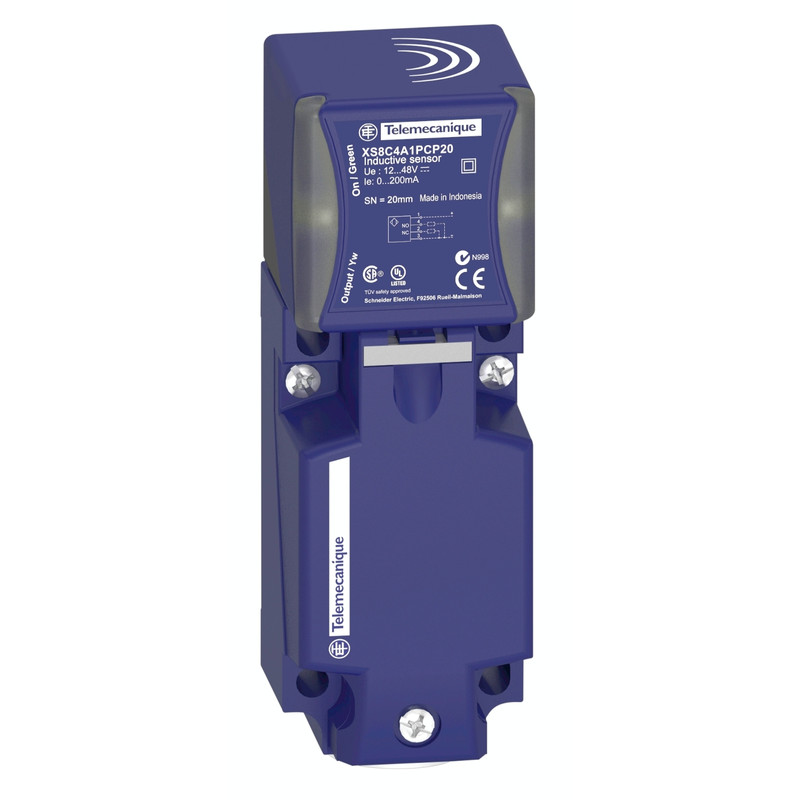

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a 40mm x 40mm x 117mm format sensor, flush mountable in metal. It features a plastic case with a plug-in 5 position turret head and a PG 13.5 cable entry. It has a sensing distance of 15mm. Two-wire, AC or DC supply, unprotected, 24V to 240V, NO or NC function programmable. This sensor must be protected by a 0.4A quick-blow fuse, reference XUZE04, connected in series with the load._ [XS7C4A1MPG13]
Specifications
Main
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Device application | - |
| Sensor name | XS7 |
| Sensor design | Form 40 x 40 x 117 |
| Size | 117 mm |
| Body type | Fixed |
| Detector flush mounting acceptance | Flush mountable |
| Material | Plastic |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| [Sn] nominal sensing distance | 15 mm |
| Discrete output function | 1 NO or 1 NC programmable |
| Output circuit type | AC/DC |
| electrical connection | Screw-clamp terminals, 4 x 1.5 mm² |
| [Us] rated supply voltage | 24...240 V AC 50/60 Hz 24...240 V DC |
| switching capacity in mA | 5...200 mA DC 5...300 mA AC |
| IP degree of protection | IP67 conforming to IEC 60529 IP65 conforming to IEC 60529 IP69K conforming to DIN 40050 |
Complementary
| Detection face | 5 positions turret head |
|---|---|
| Front material | PBT |
| Operating zone | 0…12 mm |
| Differential travel | 3...15% of Sr |
| Repeat accuracy | <= 3% of Sr |
| cable entry number | 1 tapped entry for Pg 13.5 cable gland |
| status LED | Supply on: 1 LED (green) Output state: 1 LED (yellow) |
| supply voltage limits | 20…264 V AC/DC |
| maximum residual current | 1.5 mA open state 120 V 0.6 mA open state 24 V |
| switching frequency | <= 25 Hz AC <= 50 Hz DC |
| maximum voltage drop | <5.5 V (closed) |
| Maximum delay first up | 7.5 ms |
| Maximum delay response | 1.2 ms |
| Maximum delay recovery | 1.8 ms |
| Marking | CE |
| Height | 40 mm |
| Length | 40 mm |
| Width | 117 mm |
| Net weight | 0.244 kg |
Environment
| Product certifications | UL CSA CCC |
|---|---|
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to EN 60068-2-27 |
