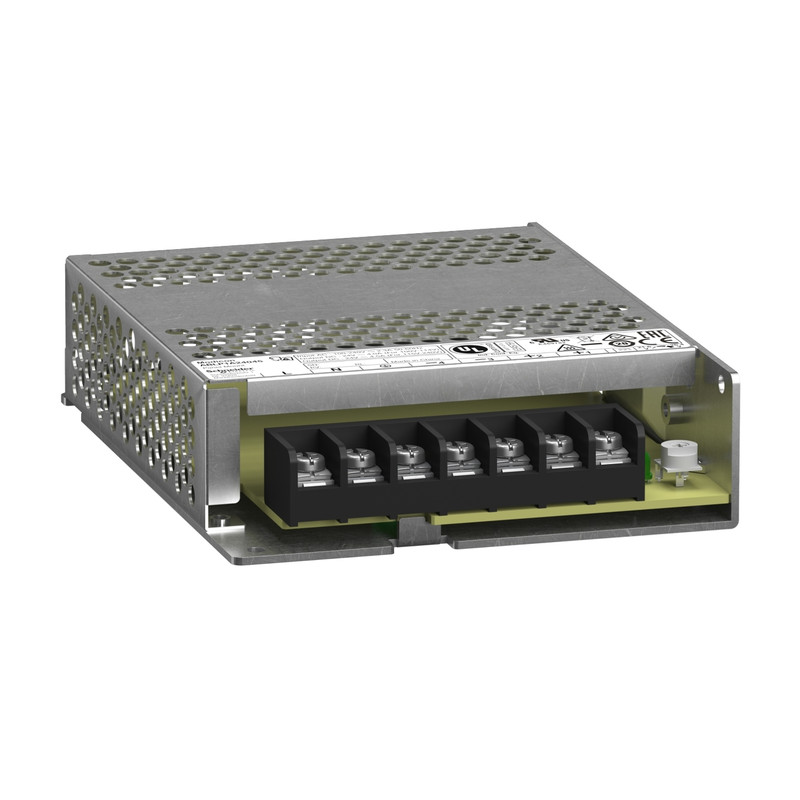

Schneider Power Supply Phaseo ABL1_ Regulated Power Supply, 100...240V AC, 24V 4.5A, single phase, Panel Mount_ [ABLP1A24045]
Industrial Automation / Power Supply / Regulator
This Modicon ABLP regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 4.5A at 24V DC and a rated power of 100W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It provides a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected It has LED diagnostics indicator available in the front for troubleshooting instantly. Its width is 97mm, its height is 30mm, its depth is 129mm. It weighs 0.300kg. It is certified with CB-Scheme, cULus Listed, cURus recognized, RCM and EAC. It is a power supply for commercial use, panel mount; It is compatible with ABLPA01 mounting plate. It installs on panel on side or on base with mounting plate fixing by screw. ABLP power supplies bring energy to your automated systems. ABLP power supplies are designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness. The main applications to use Modicon ABLP power supply are lifts, display panels, escalators, carwash, foodstuff ovens, etc._ [ABLP1A24045]
Specifications
Main
| Range of product | Modicon Power Supply |
|---|---|
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Panel mount |
| Enclosure material | Aluminium |
| Nominal input voltage | 100...240 V AC single phase |
| Rated power in W | 100 W |
| output voltage | 24 V DC |
| Power supply output current | 4.5 A |
Complementary
| Input voltage limits | 90...264 V AC |
|---|---|
| Nominal network frequency | 50…60 Hz |
| Network system compatibility | TN TT IT |
| maximum leakage current | 1 mA 240 V AC |
| input protection type | Integrated fuse (not interchangeable) 4 A |
| inrush current | 45 A at 115 V 85 A at 230 V |
| power factor | 0.55 at 115 V AC 0.45 at 230 V AC |
| efficiency | 89 % at 230 V AC |
| Output voltage adjustment | 21.6...26.4 V |
| Power dissipation in W | 20 W |
| current consumption | < 2.3 A 115 V AC < 1.5 A 230 V AC |
| Turn-on time | < 500 ms |
| holding time | > 20 ms 115 V AC > 40 ms 230 V AC |
| Startup with capacitive loads | 4000 µF |
| Residual ripple | < 150 mV |
| Expected capacitor life time | 10 year(s) |
| meantime between failure [MTBF] | 700000 h at 25 °C, full load conforming to SR 332 |
| output protection type | Against overload and short-circuits, protection technology: automatic reset Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
| connections - terminals | Screw connection: 0.75...2.5 mm², (AWG 18...AWG 14) without wire end ferrule Screw connection: 0.75...1.5 mm², (AWG 18...AWG 16) with wire end ferrule |
| line and load regulation | < 0.5 % network 0 to 100 % load at 25 °C < 1 % network full voltage range in line at 25 °C |
| status LED | 1 LED (green) output voltage |
| Depth | 129 mm |
| Height | 30 mm |
| Width | 97 mm |
| Net weight | 0.3 kg |
| Output coupling | Parallel Serial |
| mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 Double-profile DIN rail panel mounting |
| supply | SELV conforming to EN/IEC 60950-1 SELV conforming to EN/IEC 60204-1 SELV conforming to IEC 60364-4-41 |
| dielectric strength | 3750 V AC with input to output |
Environment
| Standards | EN 62368-1 EN 61010-1 EN 61010-2-201 EN 61204-3 EN 61000-6-1 EN 61000-6-2 EN 61000-6-3 EN 61000-6-4 EN 61000-3-2 EN 61000-3-3 UL 62368-1 UL 61010-1 UL 61010-2-201 CSA C22.2 No 62368-1 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 EN/IEC 62368-1 |
|---|---|
| product certifications | CE CULus EAC RCM CB Scheme KC |
| environmental characteristic | 3M4 conforming to IEC 60721-3-3 |
| operating altitude | 5000 m |
| shock resistance | 100 m/s² for 11 ms |
| IP degree of protection | IP10 |
| Ambient air temperature for operation | -30…50 °C without derating mounting position A, B, F, G < 2000 m 50…70 °C with current derating of 2 % per °C mounting position A, B, F, G < 2000 m |
| electrical shock protection class | Class I |
| Pollution degree | 2 |
| vibration resistance | 3 mm (f= 2…9 Hz) conforming to IEC 60068-2-6 10 m/s² (f= 9…200 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic immunity | Immunity to electrostatic discharge - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 Immunity to electrostatic discharge - test level: 9 kV (air discharge) conforming to EN/IEC 61000-4-2 Immunity to conducted RF disturbances - test level: 10 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3 Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3 Immunity to conducted RF disturbances - test level: 3 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3 Immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4 Surge immunity test - test level: 3 kV (between power supply and earth) conforming to EN/IEC 61000-4-5 Surge immunity test - test level: 1.5 kV (between phases) conforming to EN/IEC 61000-4-5 Immunity to conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6 Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8 Immunity to voltage dips conforming to EN/IEC 61000-4-11 Disturbing field emission conforming to EN 55016-2-3 Limits for harmonic current emissions conforming to EN 61000-3-2 Conducted disturbance emission conforming to EN 55016-1-2 Conducted disturbance emission conforming to EN 55016-2-1 |
| electromagnetic emission | Conducted emissions conforming to EN 61000-6-3 Radiated emissions conforming to EN 61000-6-4 |
