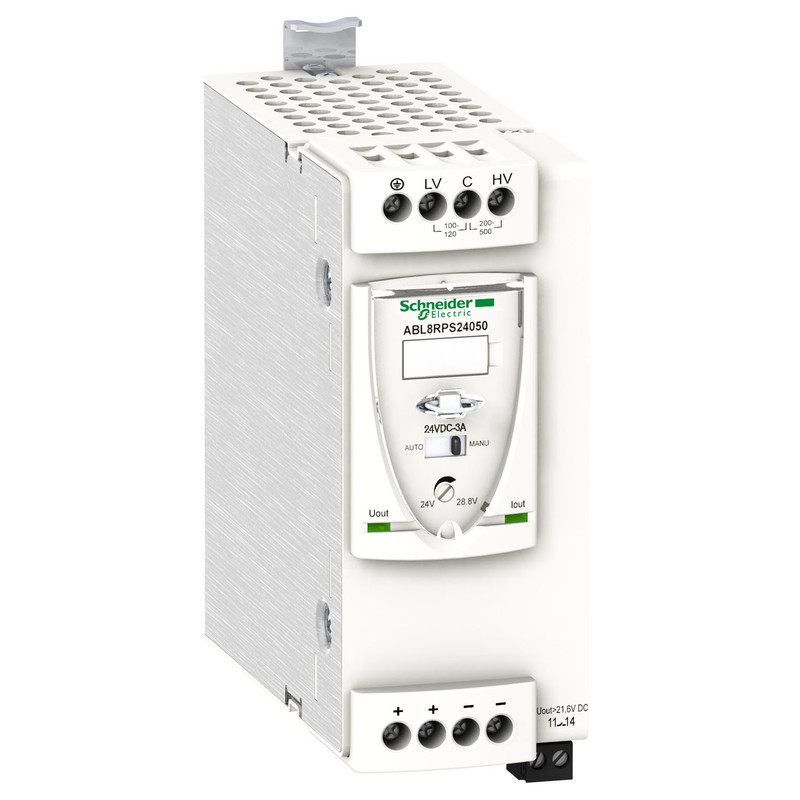

Schneider Power Supply Phaseo ABL7, ABL8_ regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 5 A_ [ABL8RPS24050]
Industrial Automation / Power Supply / Power Supply
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 5A at 24V DC and a rated power output of 120W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 56mm-wide. It weighs 0,700kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD07, GB2CD08, GV2RT06 and GV2ME06 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness._ [ABL8RPS24050]
Specifications
Main
| Range of product | Modicon Power Supply |
|---|---|
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...120 V AC single phase, terminal(s): N-L1 200...500 V AC phase to phase, terminal(s): L1-L2 |
| Rated power in W | 120 W |
| output voltage | 24 V DC |
| Power supply output current | 5 A |
| permissible temporary current boost | 1.5 x In (for 4 s) |
| Anti-harmonic filter | Low frequency harmonic currents |
Complementary
| Input voltage limits | 85...132 V AC 170...550 V AC |
|---|---|
| inrush current | 30 A |
| power factor | 0.51 at 240 V AC 0.59 at 120 V AC |
| efficiency | 87 % |
| Output voltage adjustment | 24...28.8 V adjustable |
| Power dissipation in W | 15.5 W |
| provided equipment | Power factor correction filter conforming to IEC 61000-3-2 |
| output protection type | Against overload, protection technology: manual or automatic reset Against overvoltage, protection technology: 30...32 V, manual reset Against short-circuits, protection technology: manual or automatic reset Against undervoltage, protection technology: tripping if U < 21.6 V Thermal, protection technology: automatic reset |
| connections - terminals | Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay Screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection Screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for output ground connection |
| status LED | 1 LED (green and red) output voltage 1 LED (green, red and orange) output current |
| Depth | 125 mm |
| Height | 143 mm |
| Width | 56 mm |
| Net weight | 0.7 kg |
| Output coupling | Parallel Series |
| Marking | CE |
| mounting support | 35 x 15 mm symmetrical DIN rail 35 x 7.5 mm symmetrical DIN rail |
| Operating position | Vertical |
| supply | SELV conforming to EN/IEC 60950-1 SELV conforming to EN/IEC 60204-1 SELV conforming to IEC 60364-4-41 |
| dielectric strength | 3500 V with between input and ground 4000 V with between input and output 500 V with between output and ground |
Environment
| Standards | CSA C22.2 No 60950-1 UL 508 EN/IEC 62368-1 |
|---|---|
| product certifications | CCSAus EAC KC RCM UL |
| environmental characteristic | EMC conforming to EN 61000-6-1 EMC conforming to EN 61000-6-3 EMC conforming to EN 55024 EMC conforming to EN/IEC 61000-6-4 EMC conforming to EN/IEC 61204-3 Safety conforming to EN/IEC 60950-1 Safety conforming to EN/IEC 61204-3 |
| operating altitude | 2000 m |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Ambient air temperature for operation | 50…60 °C with derating factor mounting position A < 2000 m -25…50 °C without derating mounting position A < 2000 m |
