  3. Schneider Power Supply Phaseo ABT7, ABL6_ battery control module - 24..28.8 V DC - 24 V - 20 A - for regulated SMPS_ [ABL8BBU24200]
Public Pricelist
Schneider Power Supply Phaseo ABT7, ABL6_ battery control module - 24..28.8 V DC - 24 V - 20 A - for regulated SMPS_ [ABL8BBU24200]

Schneider Power Supply Phaseo ABT7, ABL6_ battery control module - 24..28.8 V DC - 24 V - 20 A - for regulated SMPS_ [ABL8BBU24200]

https://www.hsedubai.com/web/image/product.template/43462/image_1920?unique=29e3b48

Industrial Automation / Power Supply / Power Supply Accessories

2,033.00 AED 2033.0 AED 2,033.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

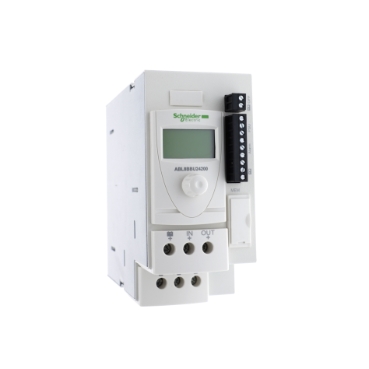

    This ABL8 battery control module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 20A at 24V DC. This battery control module is designed to act as a battery charger, to allow batteries usage during significant network power shortages. It has control backup battery charging and backup supply to ensure the longest battery life-time. It provides reliable and fast switching between network supply and battery supply avoiding disturbances on your critical control power supply lines. It weighs 0.500kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness._ [ABL8BBU24200]

    Specifications

    Main

    Range of productPhaseo
    Product or component typeBattery control module
    input voltage24...28.8 V DC
    output voltage(Ubattery-0.5) V in battery mode DC
    (Uin-0.25) V in nominal mode DC
    maximum output current20 A

    Complementary

    Input voltage limits22...30 V
    Maximum power dissipation in W7 W
    Activation thresholdAdjustable 22...36 V
    Number of output channels1
    current consumption0.6 A on load
    0.1 mA no load
    <= 40.6 A
    output protection typeAgainst overload, protection technology: 1.5 x In
    Against short-circuits, protection technology: battery-backed mode, automatic reset
    Against short-circuits, protection technology: power-supplied mode
    connections - terminalsFor diagnostic relay: removable screw terminal block, connection capacity: 1 x 0.75 mm²
    For input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8
    For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8
    fixing modeBy clips on 35 mm symmetrical DIN rail, operating position: horizontal
    By clips on 35 mm symmetrical DIN rail, operating position: vertical
    Operating altitude2000 m
    MarkingCE
    name of testElectrostatic discharges conforming to EN/IEC 61000-4-2
    Emission conforming to EN 61000-6-3
    Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3
    Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3
    Rapid transient conforming to IEC 61000-4-4 level 3
    Surge conforming to EN/IEC 61000-4-5 level 2
    Conducted/radiated emissions conforming to EN 55022 class B, 20 %
    local signalling1 C/O relay for alarm status
    1 C/O relay for battery status
    1 C/O relay for power supply status
    LCD screen for module status
    Width60 mm
    Height125 mm
    Depth160 mm
    Net weight0.5 kg

    Environment

    Product certificationsRCM
    EAC
    StandardsUL 508
    CSA C22.2 No 60950-1
    Ambient air temperature for operation-25…60 °C
    Ambient air temperature for storage-40…85 °C
    environmental characteristicEMC conforming to EN 61000-6-3
    EMC conforming to EN/IEC 61000-6-2
    Safety conforming to EN/IEC 60950-1
    Safety conforming to EN/IEC 61204-3
    IP degree of protectionIP20 conforming to EN/IEC 60529
    dielectric strength500 V between input and ground
    500 V between output and ground
    overvoltage categoryClass II conforming to VDE 0106-1
    relative humidity0…90 % during operation
    0…95 % during storage
    MTBF reliability718708 H at 24 V DC with UTE C80-810 calculation method
    vibration resistance2 gn (f= 11.9…150 Hz) conforming to EN/IEC 61131-2
    3.5 mm (f= 3…11.9 Hz) conforming to EN/IEC 61131-2
