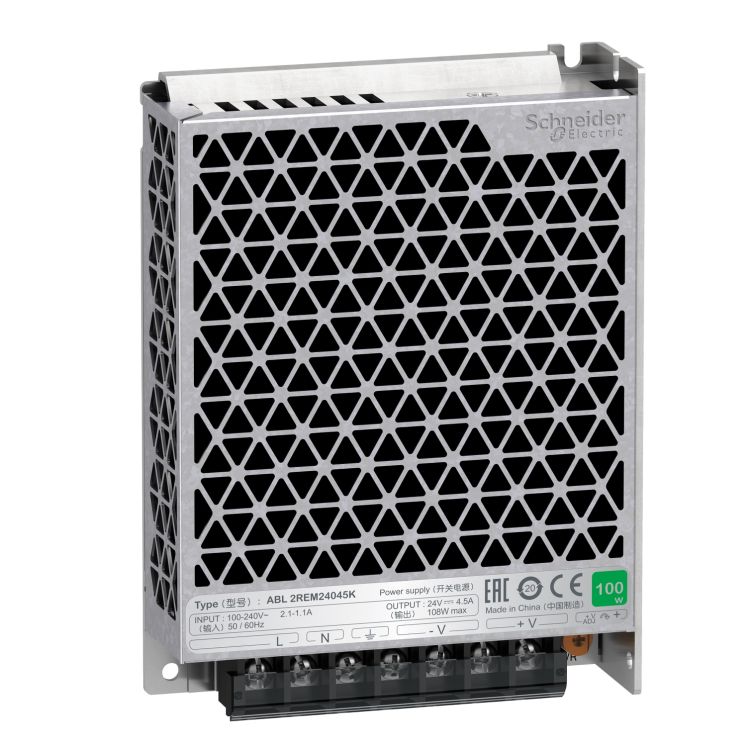

Schneider Power Supply Phaseo Easy ABL2_ single phase power supply, 100...240V input, 24V DC output, 108W, 4,5A_ [ABL2REM24045K]

Schneider Power Supply Phaseo Easy ABL2_ single phase power supply, 100...240V input, 24V DC output, 108W, 4,5A_ [ABL2REM24045K]

https://www.hsedubai.com/web/image/product.template/43522/image_1920?unique=29e3b48

Industrial Automation / Power Supply / Power Supply

224.00 AED 224.0 AED 224.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    This power supply belongs to the Easy Modicon power supply range (formely known as Phaseo Easy). It is a regulated switch mode 24V DC power supply, model 100W, with a 100V to 240V AC output voltage, and 108W nominal power. Its output current is 4.5A. It offers better performance with cost-effective. Its cooling is based on natural convection. It has automatic voltage switching. Its overload hiccup protection is 110-160%. It measures 129mm wide x 97mm high x 30mm deep. This power supply is fitted for repetitive machines. ABL2 ps are certified with: CE, EAC, KC, RCM, EN62368-1(safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 class B, RoHS. This power supply has fixing holes for panel mounting or the 4-corner bracket mounting. Better performance with cost-effective. Smart design.

    Specifications

    Main

    Range of productEasy Modicon ABL2
    Product or component typePower supply
    Power supply typeRegulated switch mode
    Rated power in W108 W
    input voltage100...240 V AC single phase
    output voltage24 V DC
    Power supply output current4.5 A
    Operating positionAny position
    vibration resistance4 gn (f= 10…500 Hz) conforming to EN/IEC 61131-2
    name of testElectromagnetic hypersensitivity (EHS) conforming to EN 61000-6-2 level A
    Complementary
    Input voltage limits85...264 V
    Network frequency47...63 Hz
    inrush current50 A at 100...240 V AC
    Cos phi0.45
    Efficiency89 %
    Power dissipation in W13.3 W
    current consumption1.1 A at 240 V
    Input protection typeIntegrated fuse (not interchangeable)
    Output voltage limits20.4...27.6 V
    Line and load regulation+/- 1 %
    holding time>= 10 ms at 115 V
    output protection typeAgainst overload, protection technology: 1.1...1.5 x In
    Against short-circuits, protection technology: 1.1...1.5 x In
    Against overvoltage, protection technology: 28.8...33.6 V
    connections - terminalsFor ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12
    MarkingCE
    electromagnetic compatibilityImmunity to electromagnetic interference conforming to EN 55022 class B
    Mounting supportDIN rail with accessory
    DIN rail with accessory
    Operating altitude5000 m
    Output couplingSeries
    Overvoltage categoryII
    meantime between failure [MTBF]600000 h at 25 °C
    status LED1 LED (green) output voltage
    Width129 mm
    Height97 mm
    Depth30 mm
    Net weight0.35 kg
    Environment
    Product certificationsEAC
    IC
    RoHS
    KC
    RCM
    IP degree of protectionIP20 conforming to IEC 62368-1
    ambient air temperature for operation-30…70 °C (with power derating of 2.5 % per °C)
    Ambient air temperature for storage-40…85 °C
    Relative humidity10…95 %
    overvoltage categoryClass I conforming to IEC 62368-1
    Pollution degree2
    dielectric strength2000 V between input and ground
