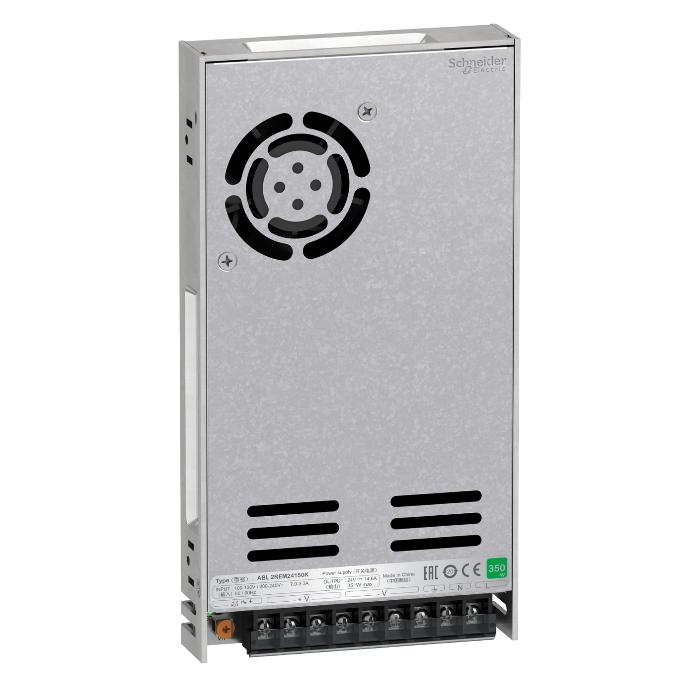

Schneider Power Supply Phaseo Easy ABL2_ single phase power supply, 100...240V input, 24V DC output, 351W, 14,6A_ [ABL2REM24150K]

Schneider Power Supply Phaseo Easy ABL2_ single phase power supply, 100...240V input, 24V DC output, 351W, 14,6A_ [ABL2REM24150K]

https://www.hsedubai.com/web/image/product.template/43479/image_1920?unique=a4959d3

Industrial Automation / Power Supply / Power Supply

424.00 AED 424.0 AED 424.00 AED

424.00 AED

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

Attachments

This power supply belongs to Easy Modicon power supply range (formely known as Phaseo Easy). It is a regulated switch mode 24V DC power supply, model 350W, with a 100V to 240V AC output voltage, and 351W nominal power. Its output current is 14.6A. It offers better performance with cost effective. Its cooling is based on forced air, with an integrated DC fan. It has a manual voltage switching. Its overload hiccup protection is 110-150%. It measures 215mm wide x 115mm high x 30mm deep. This power supply is fitted for repetitive machines. ABL2 ps are certified with: CE, EAC, KC, RCM, EN62368-1(safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 class B, RoHS. This power supply has fixing holes for panel mounting or the 4-corner bracket mounting. Better performance with cost effective. Smart design.

Specifications

Main

Range of productEasy Modicon ABL2
Product or component typePower supply
Power supply typeRegulated switch mode
Rated power in W351 W
input voltage100...120 V AC single phase
200...240 V
output voltage24 V DC
Power supply output current14.6 A
Operating positionAny position
vibration resistance4 gn (f= 10…500 Hz) conforming to EN/IEC 61131-2
name of testElectromagnetic hypersensitivity (EHS) conforming to EN 61000-6-2 level A

Complementary

Input voltage limits90...132 V
180...264 V
Network frequency47...63 Hz
inrush current60 A at 100...120 V AC
60 A at 200...240 V AC
Cos phi0.5
Efficiency87 %
Power dissipation in W52.4 W
current consumption3.3 A at 240 V
Input protection typeIntegrated fuse (not interchangeable)
Output voltage limits20.4...27.6 V
Line and load regulation+/- 1 %
holding time>= 12 ms at 115 V
output protection typeAgainst overload, protection technology: 1.1...1.5 x In
Against short-circuits, protection technology: 1.1...1.5 x In
Against overvoltage, protection technology: 28.8...33.6 V
Thermal
connections - terminalsFor ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12
MarkingCE
electromagnetic compatibilityImmunity to electromagnetic interference conforming to EN 55022 class B
Mounting supportDIN rail with accessory
DIN rail with accessory
Operating altitude5000 m
Output couplingSeries
Overvoltage categoryII
meantime between failure [MTBF]600000 h at 25 °C
status LED1 LED (green) output voltage
Width215 mm
Height115 mm
Depth30 mm
Net weight0.79 kg

Environment

Product certificationsEAC
IC
RoHS
KC
RCM
IP degree of protectionIP20 conforming to IEC 62368-1
ambient air temperature for operation-30…70 °C (with power derating of 2.5 % per °C)
Ambient air temperature for storage-40…85 °C
Relative humidity10…95 %
overvoltage categoryClass I conforming to IEC 62368-1
Pollution degree2
dielectric strength2000 V between input and ground
