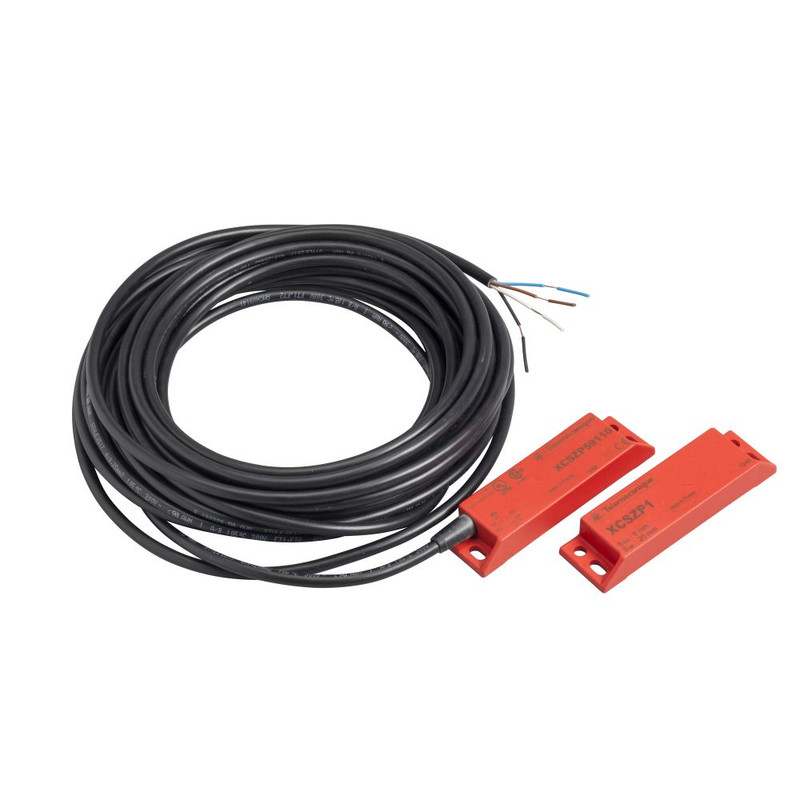

Schneider Signaling Preventa XCS_ coded magnetic switch XCSDMP - 1 NC + 2 NO - 1 NO staggered - 10m_ [XCSDMP50110]

The Preventa XCS range is an offer of safety switches. They are designed for controlling the safe opening and interlocking of guards and covers. This coded magnetic system, detects without contact. 3 approach directions. It features a rectangular plastic boby, 88mm x 25mm x 13mm, and a 10m long pre-cabled electrical connection . 3-pole contact 1 NC + 2 NO (1 NO staggered). It can reach category 4 Safety Level with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. It can reach PL equal e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. It can reach SIL 3, with the appropriate monitoring system and correctly wired, conforming to EN/IEC 61508._ [XCSDMP50110]
