Schneider Reactor SAH detuned reactors_ Anti Harmonic detuned reactor 25kvar 190Hz (3.8) 7% 50Hz 400V_ [LVR07250A40T]

Schneider Reactor SAH detuned reactors_ Anti Harmonic detuned reactor 25kvar 190Hz (3.8) 7% 50Hz 400V_ [LVR07250A40T]

https://www.hsedubai.com/web/image/product.template/42942/image_1920?unique=89778f9

Power & Energy Monitoring / Reactor / Detuned Reactor

1,821.00 AED 1821.0 AED 1,821.00 AED

1,821.00 AED

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

Attachments

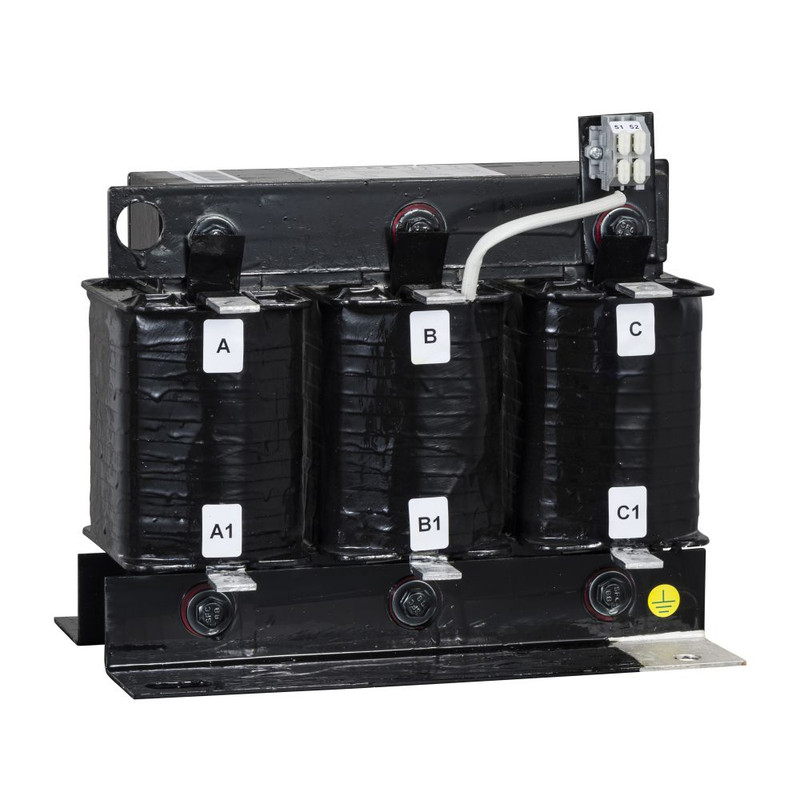

The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 25 kVar output power with 3.8/190 Hz tuning order at 400V AC at 50 Hz. Relative impedance, 7 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 220mm in height, 240mm in width and 160mm in depth. For a product weight of 15 kg._ [LVR07250A40T]
