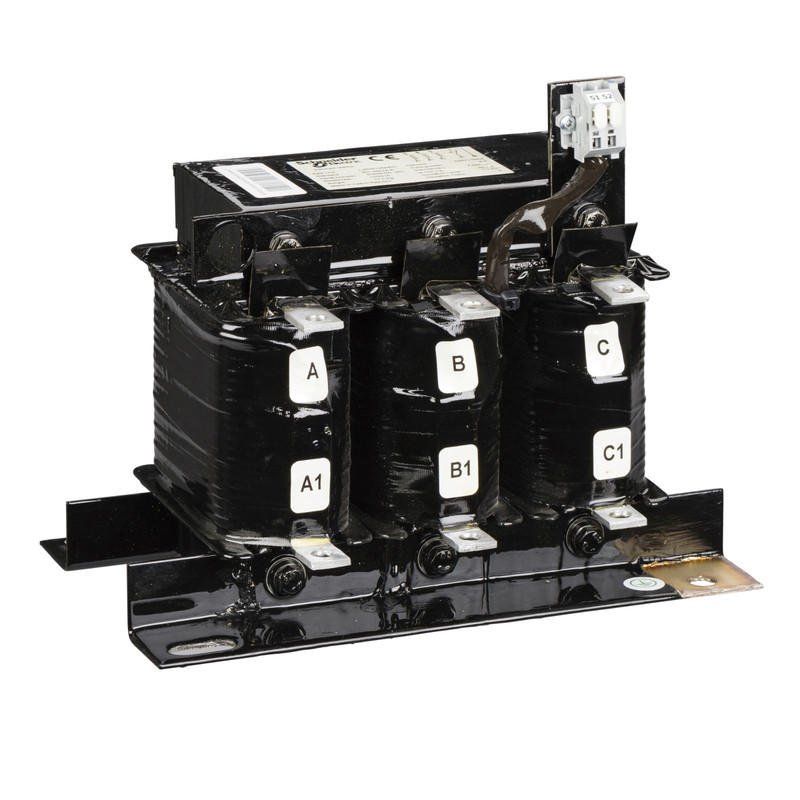

Schneider Reactor SAH detuned reactors_ Anti Harmonic detuned reactor 12.5kvar 135Hz (2.7) 14% 50Hz 400V_ [LVR14125A40T]

Schneider Reactor SAH detuned reactors_ Anti Harmonic detuned reactor 12.5kvar 135Hz (2.7) 14% 50Hz 400V_ [LVR14125A40T]

https://www.hsedubai.com/web/image/product.template/42943/image_1920?unique=29e3b48

Power & Energy Monitoring / Reactor / Detuned Reactor

2,147.00 AED 2147.0 AED 2,147.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 12.5 kVar output power with 2.7/135 Hz tuning order at 400V AC at 50 Hz. Relative impedance, 14 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 220mm in height, 240mm in width and 160mm in depth. For a product weight of 14.5 kg._ [LVR14125A40T]
