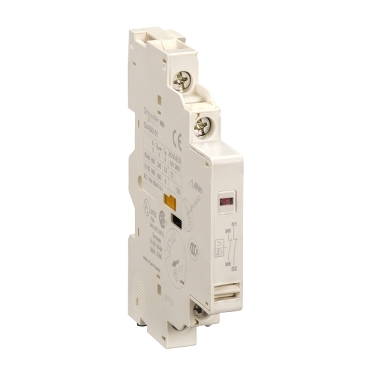

Schneider Breaker TeSys D_ TeSys GV2 & GV3 - auxiliary contact - 1 NO + 1 NO (fault)_ [GVAD1010]
Electrical / Breaker / MPCB Accessories
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO fault signaling contact + 1NO instantaneous auxiliary contact. Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
Main
| range | TeSys TeSys Deca |
|---|---|
| device short name | GVAD |
| product or component type | Auxiliary contact block |
| product compatibility | GV2L GV2P GV2RT GV3L GV2LE GV3P GV2ME |
| mounting location | Left side |
| auxiliary contacts operation | Fault signal 1 NO |
| pole contact composition | 2 NO |
Complementary
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-1 300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14 |
|---|---|
| [Ue] rated operational voltage | 48...690 V AC 24...240 V DC |
| [Ith] conventional free air thermal current | 6 A 2.5 A for fault signalling |
| protection type | GB2CB... circuit breaker GG fuse 10 A |
| mechanical durability | 100000 cycles |
| minimum switching current | 5 mA |
| minimum switching voltage | 17 V |
| rated operational power in VA | 300 VA at 48 V AC-15 - electrical durability: 100000 cycles 414 VA at 690 V AC-15 - electrical durability: 100000 cycles 500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles 500 VA at 500 V AC-15 - electrical durability: 100000 cycles 650 VA at 440 V AC-15 - electrical durability: 100000 cycles 720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles 850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles 36 VA at 24 V AC-14 - electrical durability: 1000 cycles 48 VA at 48 V AC-14 - electrical durability: 1000 cycles 72 VA at 110…127 V AC-14 - electrical durability: 1000 cycles |
| rated operational power in W | 120 W at 240 V DC-13 - electrical durability: 100000 cycles 140 W at 110 V DC-13 - electrical durability: 100000 cycles 140 W at 24 V DC-13 - electrical durability: 100000 cycles 180 W at 60 V DC-13 - electrical durability: 100000 cycles 240 W at 48 V DC-13 - electrical durability: 100000 cycles 15 W at 48 V DC-13 - electrical durability: 1000 cycles 24 W at 24 V DC-13 - electrical durability: 1000 cycles 9 W at 60 V DC-13 - electrical durability: 1000 cycles |
| tightening torque | 1.4 N.m - on screw clamp terminals |
| Height | 89 mm |
| width | 9.3 mm |
| Depth | 66 mm |
| Net weight | 0.055 kg |
| colour | Dark grey |
Environment
| environmental characteristic | Normal environment |
|---|---|
| product certifications | UKCA |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.500 cm |
| Package 1 Width | 8.700 cm |
| Package 1 Length | 6.500 cm |
| Package 1 Weight | 46 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.500 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 15.500 cm |
| Package 2 Weight | 501 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.382 kg |
