Schneider control relay, TeSys K, 4P(2NO+2NC), 690V, 24V DC standard coil

Schneider control relay, TeSys K, 4P(2NO+2NC), 690V, 24V DC standard coil

https://www.hsedubai.com/web/image/product.template/73202/image_1920?unique=29e3b48

Electrical / Breaker / Contactor Accessories

107.00 AED 107.0 AED 107.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

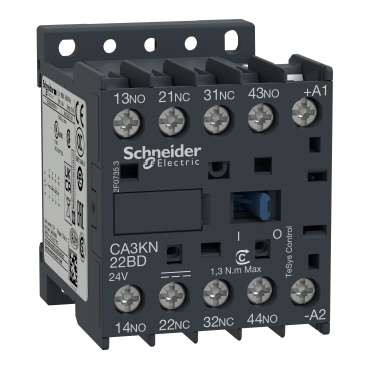

    TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

    Specifications

    Main

    RangeTeSys
    Product nameTeSys CAK
    Product or component typeControl relay
    Device short nameCA3K
    Contactor applicationControl circuit
    Utilisation categoryAC-15
    DC-13
    Pole contact composition2 NO + 2 NC
    [Ue] rated operational voltage<= 690 V <= 400 Hz
    control circuit typeDC standard
    [Uc] control circuit voltage24 V DC
    Complementary
    [Ith] conventional free air thermal current10 A (at 50 °C)
    Irms rated making capacity110 A conforming to IEC 60947
    associated fuse rating10 A gG conforming to IEC 60947
    10 A gG conforming to VDE 0660
    [Ui] rated insulation voltage690 V conforming to IEC 60947
    750 V conforming to VDE 0110 group C
    690 V conforming to BS 5424
    600 V conforming to CSA C22.2 No 14
    Mounting supportRail
    Plate
    connections - terminalsScrew clamp terminals 1 cable(s) 1.5…4 mm²solid
    Screw clamp terminals 2 cable(s) 1.5…4 mm²solid
    Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible with cable end
    Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end
    Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end
    Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible without cable end
    tightening torque1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
    1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm
    control circuit voltage limitsOperational: 0.8...1.15 Uc (at <50 °C)
    Drop-out: 0.1...0.75 Uc (at <50 °C)
    operating time10 ms coil de-energisation and NO opening
    30...40 ms coil energisation and NO closing
    15 ms coil de-energisation and NC closing
    25...35 ms coil energisation and NC opening
    Mechanical durability20 Mcycles
    maximum operating rate10000 cyc/h
    immunity to microbreaks2 ms
    inrush power in W3 W (at 20 °C)
    hold-in power consumption in W3 W at 20 °C
    heat dissipation3 W
    minimum switching voltage17 V
    minimum switching current5 mA
    non overlap distance0.5 mm
    insulation resistance> 10 MOhm
    Height58 mm
    Width45 mm
    Depth57 mm
    Net weight0.225 kg
    Environment
    standardsBS 5424
    IEC 60947
    NF C 63-140
    VDE 0660
    Product certificationsUL
    CSA
    UKCA
    IP degree of protectionIP2x
    protective treatmentTC conforming to IEC 60068
    Ambient air temperature for operation-25…50 °C
    Ambient air temperature for storage-50…80 °C
    operating altitude2000 m without derating
    flame retardanceV1 conforming to UL 94
    Requirement 2 conforming to NF F 16-101
    Requirement 2 conforming to NF F 16-102
    mechanical robustnessVibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
    Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
    Shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27
    Shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
