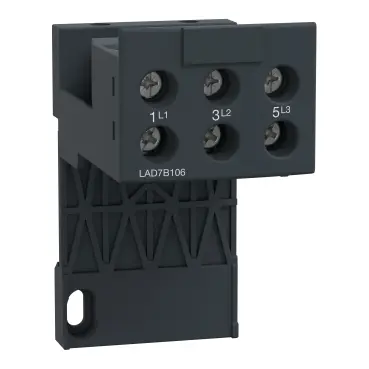

Schneider Adapter terminal block, TeSys LRD, for separate mounting of LRD01-D35 LR3D01-D35 [LAD7B106]
Electrical / Breaker / Contactor Accessories
TeSys LRD terminal block for mounting of thermal overload relays LRD01-D35, LR3D01-D35 and electronic overcurrent relays LR97D. To be used for a separate mounting between overload relay and contactor. It provides top connections with screw clamp terminals, clip-on fixing on 35 mm DIN-rail or fixing by screws. Green Premium compliant (RoHS/REACh).
Specifications
Main
| Range | TeSys |
|---|---|
| Product or component type | Terminal block |
| Device short name | LAD |
| Accessory / separate part category | Connection accessory |
| Product compatibility | LRD01...35 LR3D01...D35 |
| Quantity per set | Set of 10 |
| Connections - terminals | Screw terminals for lug |
|---|---|
| Height | 85 mm |
| Width | 45 mm |
| Depth | 80 mm |
| Net weight | 0.1 kg |
