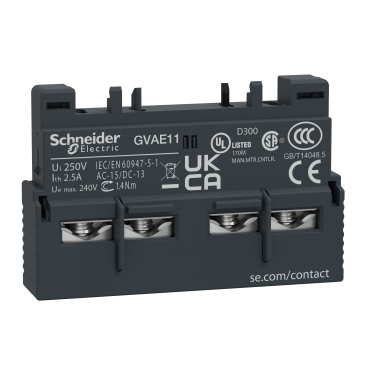

Schneider Breaker TeSys GV2_ TeSys GV2 & GV3 - auxiliary contact - 1 NO + 1 NC_ [GVAE11]

Schneider Breaker TeSys GV2_ TeSys GV2 & GV3 - auxiliary contact - 1 NO + 1 NC_ [GVAE11]

https://www.hsedubai.com/web/image/product.template/73020/image_1920?unique=29e3b48

Electrical / Breaker / MPCB Accessories

29.30 AED 29.3 AED 29.30 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).


    Specifications

    Main

    rangeTeSys
    TeSys Deca
    device short nameGVAE
    product or component typeAuxiliary contact block
    product compatibilityGV2P
    GV2RT
    GV2ME
    GV3L
    GV2LE
    GV3P
    GV2L
    mounting locationFront side
    pole contact composition1 NO + 1 NC
    Quantity per setSet of 10

    Complementary

    [Ui] rated insulation voltage300 V conforming to UL 508
    300 V conforming to CSA C22.2 No 14
    250 V conforming to IEC 60947-1
    [Ue] rated operational voltage24...240 V AC
    24...60 V DC
    [Ith] conventional free air thermal current2.5 A
    protection typeGG fuse 10 A
    GB2CB06 circuit breaker 10 A
    mechanical durability100000 cycles
    minimum switching current5 mA
    minimum switching voltage17 V
    rated operational power in VA120 VA at 110…120 V AC-15 - electrical durability: 100000 cycles
    120 VA at 230…240 V AC-15 - electrical durability: 100000 cycles
    48 VA at 24 V AC-15 - electrical durability: 100000 cycles
    60 VA at 48 V AC-15 - electrical durability: 100000 cycles
    rated operational power in W15 W at 48 V DC-13 - electrical durability: 100000 cycles
    24 W at 24 V DC-13 - electrical durability: 100000 cycles
    9 W at 60 V DC-13 - electrical durability: 100000 cycles
    tightening torque1.4 N.m - on screw clamp terminals
    Height11 mm
    width45 mm
    Depth29 mm
    Net weight0.02 kg

    Environment

    environmental characteristicNormal environment
    product certificationsUKCA

    Packing Units

    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height1.2 cm
    Package 1 Width6 cm
    Package 1 Length7 cm
    Package 1 Weight17 g
    Unit Type of Package 2BB1
    Number of Units in Package 210
    Package 2 Height6.2 cm
    Package 2 Width12 cm
    Package 2 Length7.4 cm
    Package 2 Weight174 g
    Unit Type of Package 3S02
    Number of Units in Package 3220
    Package 3 Height15 cm
    Package 3 Width30 cm
    Package 3 Length40 cm
    Package 3 Weight4.383 kg
