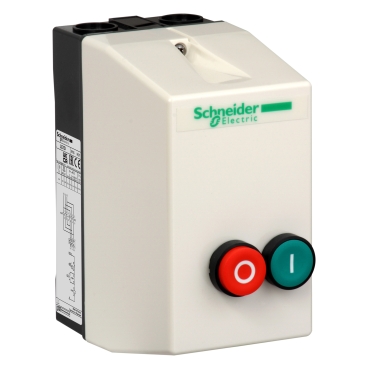

Schneider Breaker TeSys_ TeSys LE - enclosed DOL starter - 18 A - 415 V AC coil_ [LE1D18N7]
Electrical / Breaker / Contactor
Specifications
Main
| range | TeSys |
|---|---|
| product name | TeSys LE |
| device short name | LE1D |
| product or component type | Enclosed DOL starter |
| device application | Standard |
| utilisation category | AC-3 |
| device composition | Thermal overload relay ordered separately Contactor |
| control type | Push-button start green I Push-button stop/reset red O |
| motor power kW | 10 kW at 500 V AC 50/60 Hz 10 kW at 660/690 V AC 50/60 Hz 4 kW at 220/230 V AC 50/60 Hz 9 kW at 415 V AC 50/60 Hz 9 kW at 440 V AC 50/60 Hz 7.5 kW at 380/400 V AC 50/60 Hz |
|---|---|
| [Ith] Conventional free air thermal current | 17 A |
| [Uc] control circuit voltage | 415 V AC 50/60 Hz |
| cable entry number | 2 ISO20 top 2 ISO20 bottom 2 Pg 16 bottom 2 ISO25 top 2 Pg 21 bottom 2 ISO25 bottom |
| width | 101 mm |
| Height | 201 mm |
| Depth | 153.5 mm |
| Net weight | 1.015 kg |
| material | Polycarbonate |
|---|---|
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 60529 |
| Standards | IEC 60947-4-1 |
| ambient air temperature for operation | -5…40 °C |
| environmental characteristic | Standard environment |
| product certifications | UKCA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 17.5 cm |
| Package 1 Width | 21.5 cm |
| Package 1 Length | 26 cm |
| Package 1 Weight | 1.164 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 22 |
| Package 2 Height | 75 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 38.96 kg |
