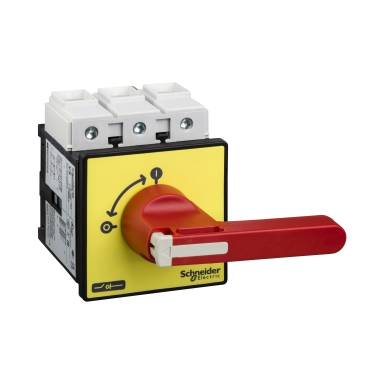

Schneider Breaker TeSys Vario_ TeSys Vario - emergency stop switch disconnector - 175 A - on door_ [VCF6]
Electrical / Breaker / Isolator Switch
TeSys Vario switch disconnector for door mounting, 3 poles, 175A/690V, for motor switching applications up to 45kW@400V AC-23. Complete unit composed of a switch body V6, a red handle with yellow 90x90mm front plate KCF3PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Main
| Range | TeSys |
|---|---|
| Product Name | TeSys VARIO |
| Device Short Name | VCF |
| Product Type | Emergency stop switch disconnector |
Complementary
| Device Composition | Handle Switch |
|---|---|
| Mounting Support | Handle: door Switch: door |
| Mounting Method | By 4 screws for handle |
| Performance Level | High performance |
| Number of Poles | 3P |
| Contact Type and Composition | 3 NO |
| [Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
| IEC Rated Operational Power in W | 30 kW at 230...240 V (AC-3) 37 kW at 400...415 V (AC-3) 37 kW at 690 V (AC-3) 45 kW at 500 V (AC-3) 45 kW at 690 V (AC-23A) 55 kW at 500 V (AC-23A) 30 kW at 230...240 V (AC-23A) 45 kW at 400...415 V (AC-23A) |
| [Ie] Rated Operational Current | 83 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current | 175 A |
| [Ithe] Conventional Enclosed Thermal Current | 140 A |
| Making Capacity ( I Rms) | 1750 A at 400 V AC-21A 1750 A at 400 V AC-22A 1750 A at 400 V AC-23A |
| Breaking Capacity | 1400 A at 400 V (AC-21A) 1400 A at 400 V (AC-22A) 1400 A at 400 V (AC-23A) |
| Rated Conditional Short Circuit Current | 10 kA at 400 V - associated fuse 200 A aM 10 kA at 400 V - associated fuse 200 A gG |
| [Icm] Rated Short Circuit Making Capacity | 2.8 kA at 400 V at Ipeak |
| [Icw] Rated Short Time Withstand Current | 2100 A at 400 V duration: 1 s |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Suitability for Isolation | Yes |
| Network Type | AC DC |
| Intermittent Duty Class | 30 |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Direct |
| Handle Color | Red |
| Handle Front Plate Color | Yellow |
| Rotary Handle Padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| Mechanical Durability | 30000 cycles |
| Electrical Durability | 30000 cycles AC-21 30000 cycles DC-1...5 |
| IEC Terminal Connection | Power circuit: screw clamp terminals95 mm² - solid Power circuit: screw clamp terminals70 mm² - flexible - with cable end |
| Tightening Torque | Power circuit: 22.6 N.m - on screw clamp terminals |
| Base Dimension | 90 x 90 mm |
| Height | 125 mm |
| Width | 90 mm |
| Product Weight | 1.2 kg |
Environment
| Standards | IEC 60947-3 |
|---|---|
| Product Certifications | GL UL CSA CCC UKCA |
| Degree of Protection | IP20 conforming to IEC 60529 IP65 |
| Protective Treatment | TC |
| Mechanical Robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient Air Temperature for Operation | -20…50 °C |
| Fire Resistance | 960 °C conforming to IEC 60695-2-1 |
| Compatibility Code | Main switch disconnector |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 17.5 cm |
| Package 1 Width | 17.0 cm |
| Package 1 Length | 10.0 cm |
| Package 1 Weight | 1.064 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 6.843 kg |
