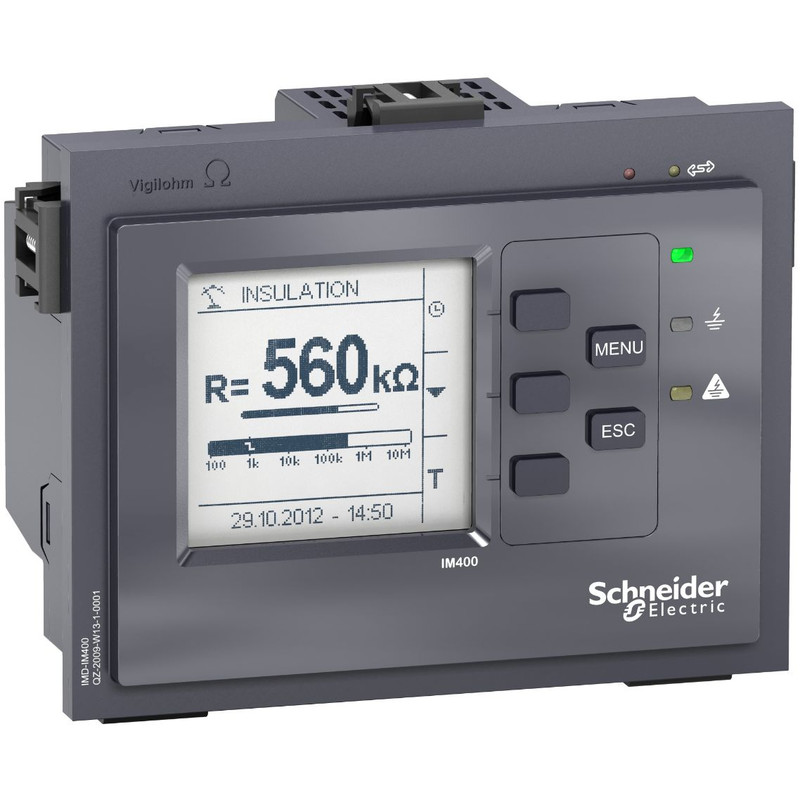

Schneider Display Vigilohm_ VIGILOHM IM400THR - medium voltage network 0 to 33kV L-PE - supply 100-440 Vac_ [IMDIM400THR]

Schneider Display Vigilohm_ VIGILOHM IM400THR - medium voltage network 0 to 33kV L-PE - supply 100-440 Vac_ [IMDIM400THR]

https://www.hsedubai.com/web/image/product.template/42634/image_1920?unique=1ab4d69

Power & Energy Monitoring / Display / Monitoring Device

15,850.00 AED 15850.0 AED 15,850.00 AED

15,850.00 AED

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

Attachments

This device belongs to the Vigilohm range designed to monitor ungrounded/IT electrical networks, in accordance to installation and products standards. According to standards, it is recommanded to equip your systems with Insulation Monitoring Devices (IMD). This device is dedicated to monitoring AC medium voltage installations, when associated with its accessories, P1N and Voltage transformer. It mesures the system insulation resistance by injecting a DC current between the network and ground. Configuration will be set depending on the installation. Settings are available on the front of the device, through the HMI screen. Settings are related to alarm and pre-alarm thresholds, alarm delay from 0 to 7200 secondes, and others are available. It monitors networks up to 33 kV, depending on the voltage transformer to be used. The black and white screen can displays insulation resistance from 10 ohms to 10 megohms and temporary faults. Auto-test starts automatically every 5 hours, and on demand. In case the system insulation resistance drops below the set threshold, meaning a ground fault occurred, an alarm is triggered thru the IMD output relay. Once no fault is monitored, the alarm is cleared, the alarm relay is back to normal. The device can be supplied by a 110VAC to 440VAC source or a 110VDC to 440VDC, all with a tolérence of plus or minus 15%. This product is installed flush mounted, an enclosure door for example. Front face ingress protection is IP5, rear IP20 and overvolage 300V category III. The monitoring device is equipped with a RS485 communication port, Modbus protocol._ [IMDIM400THR]
