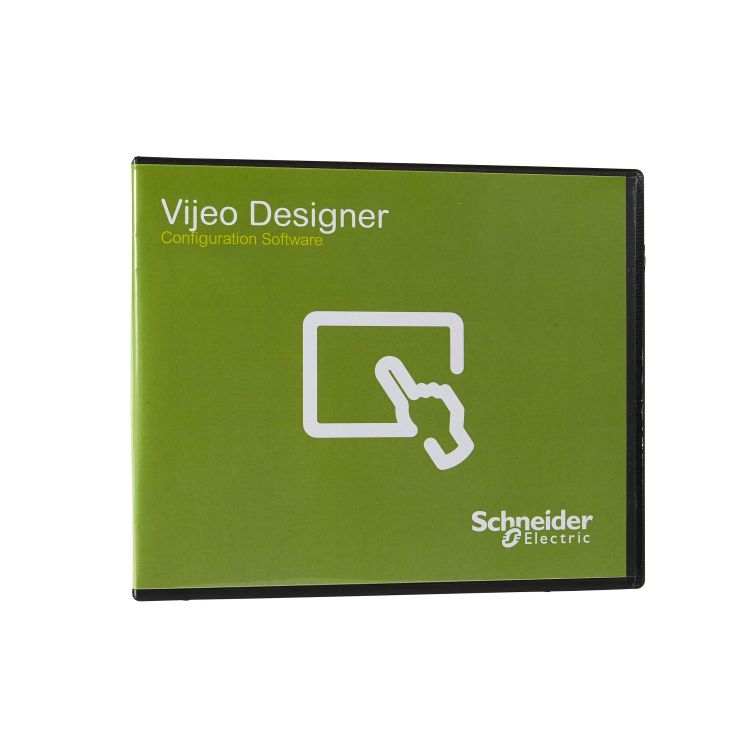

Schneider HMI Vijeo Designer_ Vijeo Designer 6.2, HMI configuration software single license_ [VJDSNDTGSV62M]
Industrial Automation / HMI / HMI Software
This software license belongs to the Vijeo Designer range, Schneider Electric's HMI classic configuraion software offer. It is a cross-platform software for designing applications on the Harmony range. This Vijeo Designer configuration software is ideal for creation of automated system control operator dialog applications by single engineers. VJDSNDTGSV62M Buildtime Single license can be installed on a 1 station. This cross-platform configuration software enables operator dialogue projects to be processed quickly and easily with up to 5 configurable windows. This classic HMI software uses Ethernet TCP/IP connectivity to support WEB Gate remote access, sharing of application data between panels, and transfer of recipes and logs for variables. It can display graphic objects, character fonts and project reports in 7 languages (English, French, German, Italian, Spanish, Portuguese and Simplified Chinese). It is compatible with the Harmony ranges (STU, GTO, GTU, GTUX, GK, HMIBMP and HMIBMU Panel and Box PCs) and Magelis range XBTGH. Vijeo DesignꞌAir and Vijeo DesignꞌAir Plus are remote access applications for Android and iOS tablets and smartphones._ [VJDSNDTGSV62M]
Specifications
Main
| range of product | Vijeo Designer |
|---|---|
| product or component type | Configuration software |
| language | French English German Italian Chinese Spanish Portuguese |
| format | DVD-ROM |
| previous software version | V6.1 |
| type of license | Single (1 station) |
| software version | V6.2 |
| product compatibility | SoMachine V4.1 or higher |
|---|---|
| range compatibility | Harmony XBT GH Harmony XBT GTW Harmony Compact iPC Harmony XBT GK Harmony GTO Harmony STO & STU Harmony XBT GT Harmony Smart Harmony GTU Harmony iPC |
| software designation | Vijeo Designer |
| system requirements | Processor suitable for operating system Windows 7 Professional 32/64 bit Processor suitable for operating system Windows 8.1 Processor suitable for operating system Windows 10 Professional 32/64 bit |
| communication port protocol | MELSEC Modbus RTU master Modbus TCP master Sysmacway Ethernet/IP Explicit Modbus 32-bit extensions Profibus DP ELAU PacDrive ROC Plus Allen-Bradley UniTE TCP/IP USB Simatic Toyopuc PC3J Uni-Telway Modbus Plus Fipio/Fipway |
| provided equipment | Acrobat Reader Tutorial in flash format User's documentation in electronic format Vijeo Designer software |
| software function | 8000 variables 9999 alarms 4 asian alphabets 2 middle eastern alphabets Sharing up to 300 variables 34 western alphabets |
| audio video coding standard | JPEG |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.4 cm |
| Package 1 Width | 14.0 cm |
| Package 1 Length | 16.5 cm |
| Package 1 Weight | 105.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 2.03 kg |
