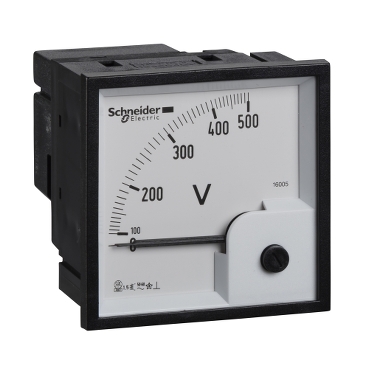

Schneider Meter VLT_ analog voltmeter VLT - 72 x 72 mm - 0.500 V_ [16005]
Power & Energy Monitoring / Meter / Volt Meter
This instrument is aimed to be mounted on front face of monitoring switchboards. The voltmeter measure in volts the potential difference (voltage) of an electrical circuit. The scale of the dial is from 0 to 500V. Accuracy class 1.5. Complient with standards IEC 60051-1, IEC 61010-1 and IEC 61000-4. The dimensions of the product are 72 mm in width, 72 mm in heigh and 75 mm in depth. please prepare a 68 x 68 mm cutout on the enclosure door.
Specifications
Main
| range | PowerLogic |
|---|---|
| device short name | VLT |
| product or component type | Voltmeter |
| range compatibility | Prisma (Prisma P) door Prisma (Prisma G) door |
| scale | 0-500 V |
| technology type | Ferromagnetic |
| scale type | 62 mm over 90° |
| mounting support | Front face |
| type of measurement | Voltage |
|---|---|
| accuracy class | Class 1.5 |
| power consumption in VA | 3 VA |
| power consumption in VA | 3 VA |
| overload withstand | 1.2 Un, permanently 2 Un, 5 s |
| device mounting | Flush |
| operating position | 30°/vertical |
| width | 72 mm |
| Height | 72 mm |
| Depth | 75 mm |
| temperature drift | +/- 0.003 %/°C |
| Standards | IEC 61010-1 IEC 60051-1 IEC 61000-4 |
|---|---|
| IP degree of protection | IP52 |
| Ambient air temperature for operation | -25…50 °C |
| reference temperature | 23 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 9.0 cm |
| Package 1 Length | 10.0 cm |
| Package 1 Weight | 215.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 33 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.38 kg |
