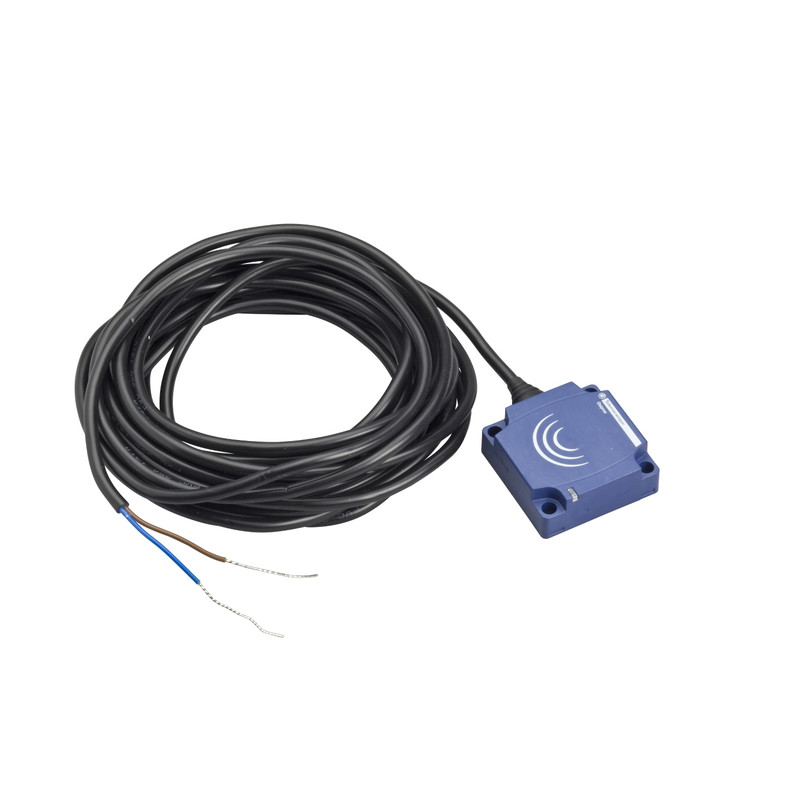

Schneider Sensors XS & XT_ inductive sensor XS9 40x40x15 - PBT - Sn15mm - 24VDC - cable 2m_ [XS9C111A2L2]
Industrial Automation / Sensor / Sensor
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. This sensor is suitable for position, displacement and deformation control/monitoring applications. It is a flat format sensor (40mm x 40mm x 15mm) , flush mountable in metal. It features a plastic case and a 2m long PvR cable. It has a sensing distance of 15mm. Two-wire DC, 12V to 24V, analogue output signal 4mA to 20 mA. This sensor is ECOLAB certified._ [XS9C111A2L2]
Specifications
Main
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Device application | - |
| Sensor name | XS9 |
| Sensor design | Flat form 40 x 40 x 15 |
| Size | 15 mm |
| Body type | Fixed |
| Detector flush mounting acceptance | Flush mountable |
| Material | Plastic |
| Enclosure material | PBT |
| Type of output signal | Analogue |
| Wiring technique | 2-wire |
| [Sn] nominal sensing distance | 15 mm |
| Output circuit type | DC |
| Analogue output range | 4...20 mA |
| electrical connection | Cable |
| Cable length | 2 m |
| [Us] rated supply voltage | 24 V DC |
| IP degree of protection | IP68 double insulation conforming to IEC 60529 |
Complementary
| Detection face | Frontal |
|---|---|
| Front material | PBT |
| Operating zone | 2…15 mm |
| Repeat accuracy | <= 3% of Sr |
| Linearity error | +/- 2 mA |
| Cable composition | 3 x 0.34 mm² |
| Wire insulation material | PvR |
| status LED | Without |
| supply voltage limits | 15…36 V DC |
| switching frequency | <= 1000 Hz |
| current consumption | 0...4 mA no-load |
| Maximum output current drift | 10 % |
| Marking | CE |
| Depth | 15 mm |
| Height | 40 mm |
| Width | 40 mm |
Environment
| Product certifications | CSA UL Ecolab |
|---|---|
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
