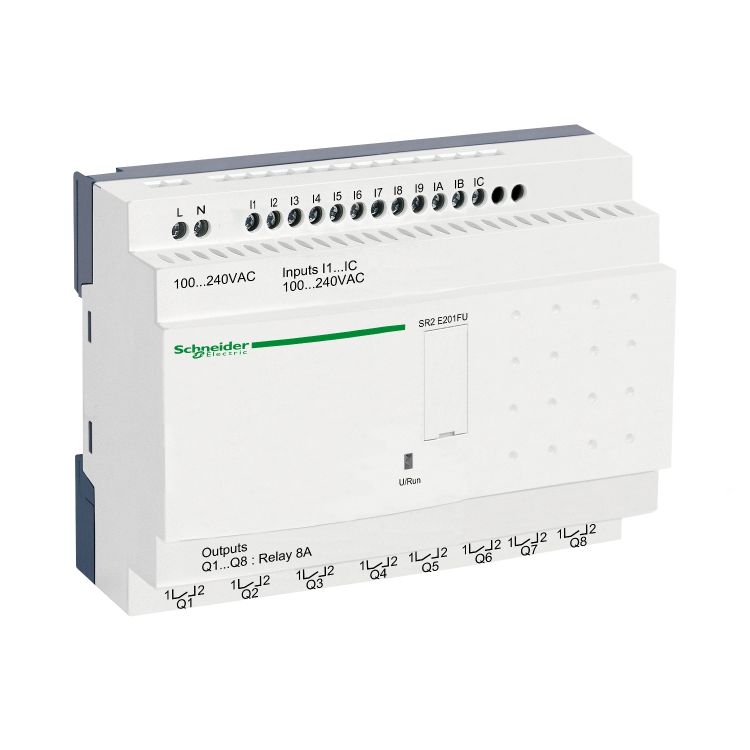

Schneider PLC Zelio Logic_ compact smart relay Zelio Logic - 20 I O - 100..240 V AC - clock - no display_ [SR2E201FU]

Schneider PLC Zelio Logic_ compact smart relay Zelio Logic - 20 I O - 100..240 V AC - clock - no display_ [SR2E201FU]

https://www.hsedubai.com/web/image/product.template/49554/image_1920?unique=29e3b48

Industrial Automation / PLC / Compact PLC

677.00 AED 677.0 AED 677.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    This product is Partsof the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes without display and clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 8 relay outputs with normally opened contact and 12 discrete inputs. It has a rated supply voltage of 100V to 240V AC, a maximum supply current of 50mA at 240V (without extension), 100mA at 100V (without extension) and a power consumption of 11VA without extension. It is an IP20 and IP40 rated product. It weighs 0.35kg. This product meets EN/IEC 61000-4-3, EN/IEC 61000-4-11, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-12, EN/IEC 61000-4-4 level 3, N/IEC 61000-4-5, EN/IEC 60068-2-27 Ea and EN/IEC 61000-4-6 level 3 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards._ [SR2E201FU]

    Specifications

    Main

    Range of productZelio Logic
    Product or component typeCompact smart relay

    Complementary

    Local displayWithout
    number or control scheme lines0…240 with ladder programming
    0…500 with FBD programming
    Cycle time6…90 ms
    backup time10 years at 25 °C
    clock drift12 min/year at 0…55 °C
    6 s/month at 25 °C
    ChecksProgram memory on each power up
    [Us] rated supply voltage100...240 V AC
    Supply voltage limits85…264 V
    Supply frequency50/60 Hz
    maximum supply current100 mA at 100 V (without extension)
    50 mA at 240 V (without extension)
    power consumption in VA11 VA without extension
    Isolation voltage1780 V
    protection typeAgainst inversion of terminals (control instructions not executed)
    discrete input number12
    discrete input voltage100...240 V AC
    Discrete input current0.6 mA
    Discrete input frequency57...63 Hz
    47...53 Hz
    voltage state 1 guaranteed>= 79 V for discrete input
    voltage state 0 guaranteed<= 40 V for discrete input
    current state 1 guaranteed>= 0.17 mA (discrete input)
    current state 0 guaranteed<= 0.5 mA (discrete input)
    Analogue input number0
    input impedance350 kOhm for discrete input
    number of outputs8 relay
    output voltage limits5...30 V DC (relay output)
    24...250 V AC
    contacts type and compositionNO for relay output
    output thermal current8 A for all 8 outputs for relay output
    electrical durabilityAC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1
    AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1
    DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1
    DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1
    switching capacity in mA>= 10 mA at 12 V (relay output)
    operating rate in Hz0.1 Hz (at Ie) for relay output
    10 Hz (no load) for relay output
    mechanical durability10000000 cycles for relay output
    [Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
    ClockWith
    response time50 ms with ladder programming (from state 0 to state 1) for discrete input
    50 ms with ladder programming (from state 1 to state 0) for discrete input
    50...255 ms with FBD programming (from state 0 to state 1) for discrete input
    50...255 ms with FBD programming (from state 1 to state 0) for discrete input
    10 ms (from state 0 to state 1) for relay output
    5 ms (from state 1 to state 0) for relay output
    connections - terminalsScrew terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
    Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid
    Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
    Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid
    Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end
    Tightening torque0.5 N.m
    overvoltage categoryIII conforming to EN/IEC 60664-1
    Net weight0.35 kg

    Environment

    immunity to microbreaks10 ms
    Product certificationsGL
    GOST
    CSA
    UL
    C-Tick
    StandardsEN/IEC 61000-4-3
    EN/IEC 61000-4-11
    EN/IEC 60068-2-6 Fc
    EN/IEC 61000-4-2 level 3
    EN/IEC 61000-4-12
    EN/IEC 61000-4-4 level 3
    EN/IEC 61000-4-5
    EN/IEC 60068-2-27 Ea
    EN/IEC 61000-4-6 level 3
    IP degree of protectionIP20 (terminal block) conforming to IEC 60529
    IP40 (front panel) conforming to IEC 60529
    environmental characteristicEMC directive conforming to EN/IEC 61000-6-2
    EMC directive conforming to EN/IEC 61000-6-3
    EMC directive conforming to EN/IEC 61000-6-4
    EMC directive conforming to EN/IEC 61131-2 zone B
    Low voltage directive conforming to EN/IEC 61131-2
    disturbance radiated/conductedClass B conforming to EN 55022-11 group 1
    pollution degree2 conforming to EN/IEC 61131-2
    ambient air temperature for operation-20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
    -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
    Ambient air temperature for storage-40…70 °C
    Operating altitude2000 m
    Maximum altitude transport3048 m
    relative humidity95 % without condensation or dripping water
