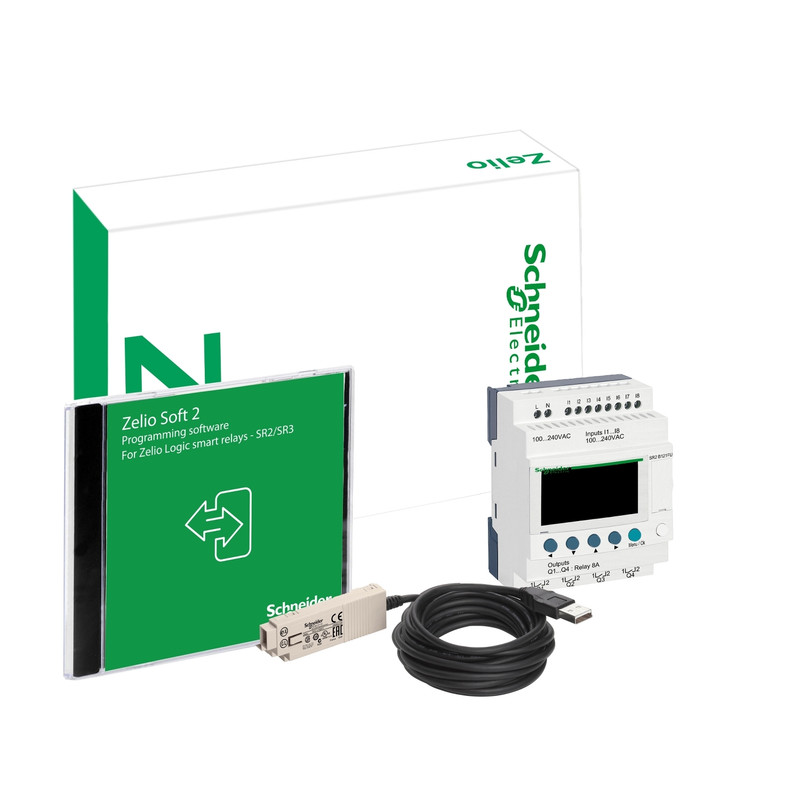

Schneider PLC Zelio Logic_ compact smart relay Zelio Logic - “discovery” pack - 12 I O - 100..240V AC_ [SR2PACKFU]
Industrial Automation / PLC / Compact PLC Accessories
This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic modular discovery pack features 12 I/Os, local display, 120 with ladder and 0 to 200 with FBD programming control scheme lines. It is a smart relay with rated supply voltage of 100 to 240V AC and cycle time of 6ms to 90ms. It offers 8 discrete inputs with voltage of 100 to 240V AC and 4 relay outputs from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.7kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Specifications
Main
| Range of product | Zelio Logic |
|---|---|
| Product or component type | Compact discovery packs |
| discrete input number | 8 |
| number of outputs | 4 relay |
Complementary
| Kit composition | SR2B121FU Cable PC SR2USB01 for connection to PC |
|---|---|
| Input/output number | 12 |
| Local display | With |
| number or control scheme lines | 120 with ladder programming 0…200 with FBD programming |
| Cycle time | 6…90 ms |
| backup time | 10 years at 25 °C |
| clock drift | 12 min/year at 0…55 °C 6 s/month at 25 °C |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 100...240 V |
| Supply voltage limits | 85…264 V |
| Supply frequency | 50/60 Hz |
| maximum supply current | 30 mA at 240 V (without extension) 80 mA at 100 V (without extension) |
| power consumption in VA | 7 VA without extension |
| Isolation voltage | 1780 V |
| protection type | Against inversion of terminals (control instructions not executed) |
| discrete input voltage | 100...240 V AC |
| Discrete input current | 0.6 mA |
| Discrete input frequency | 47...53 Hz 57...63 Hz |
| voltage state 1 guaranteed | >= 79 V for discrete input |
| voltage state 0 guaranteed | <= 40 V for discrete input |
| current state 1 guaranteed | >= 0.17 mA (discrete input) |
| current state 0 guaranteed | <= 0.5 mA (discrete input) |
| input impedance | 350 kOhm for discrete input |
| output voltage limits | 5...30 V DC (relay output) 24...250 V AC |
| contacts type and composition | NO for relay output |
| output thermal current | 8 A for all 4 outputs for relay output |
| electrical durability | AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1 AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1 DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1 DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1 |
| switching capacity in mA | >= 10 mA at 12 V (relay output) |
| operating rate in Hz | 0.1 Hz (at Ie) for relay output 10 Hz (no load) for relay output |
| mechanical durability | 10000000 cycles for relay output |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| Clock | With |
| response time | 50 ms with ladder programming (from state 0 to state 1) for discrete input 50 ms with ladder programming (from state 1 to state 0) for discrete input 50...255 ms with FBD programming (from state 0 to state 1) for discrete input 50...255 ms with FBD programming (from state 1 to state 0) for discrete input 10 ms (from state 0 to state 1) for relay output 5 ms (from state 1 to state 0) for relay output |
| connections - terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| Tightening torque | 0.5 N.m |
| overvoltage category | III conforming to EN/IEC 60664-1 |
| Net weight | 0.7 kg |
Environment
| immunity to microbreaks | 10 ms |
|---|---|
| Product certifications | GOST CSA UL C-Tick GL |
| Standards | EN/IEC 61000-4-2 level 3 EN/IEC 61000-4-12 EN/IEC 61000-4-11 EN/IEC 61000-4-3 EN/IEC 60068-2-6 Fc EN/IEC 61000-4-6 level 3 EN/IEC 60068-2-27 Ea EN/IEC 61000-4-5 EN/IEC 61000-4-4 level 3 |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529 |
| environmental characteristic | EMC directive conforming to EN/IEC 61000-6-2 EMC directive conforming to EN/IEC 61000-6-3 EMC directive conforming to EN/IEC 61000-6-4 EMC directive conforming to EN/IEC 61131-2 zone B Low voltage directive conforming to EN/IEC 61131-2 |
| disturbance radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| pollution degree | 2 conforming to EN/IEC 61131-2 |
| ambient air temperature for operation | -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2 -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3048 m |
| relative humidity | 95 % without condensation or dripping water |
