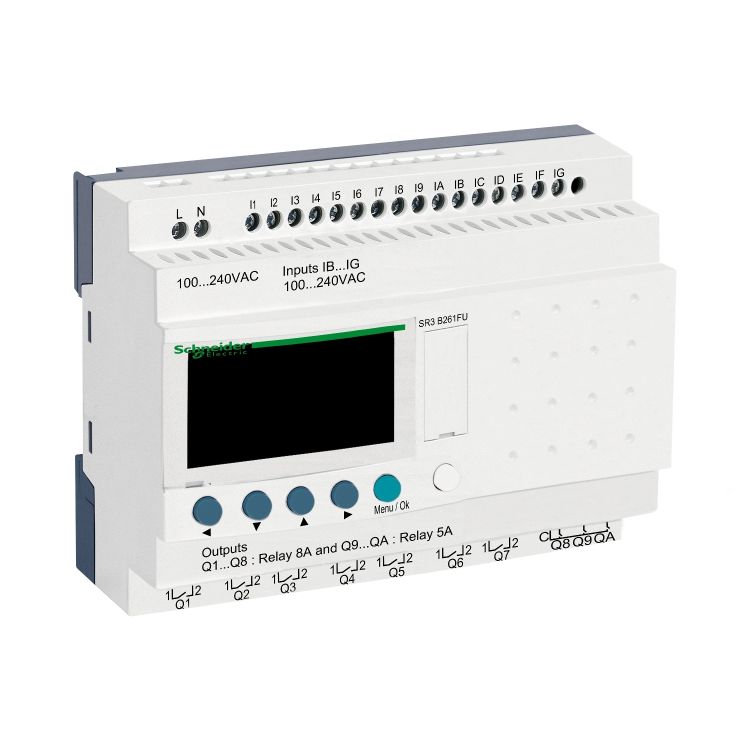

Schneider PLC Zelio Logic_ modular smart relay Zelio Logic - 26 I O - 100..240 V AC - clock - display_ [SR3B261FU]

Schneider PLC Zelio Logic_ modular smart relay Zelio Logic - 26 I O - 100..240 V AC - clock - display_ [SR3B261FU]

https://www.hsedubai.com/web/image/product.template/49537/image_1920?unique=29e3b48

Industrial Automation / PLC / Compact PLC

1,021.67 AED 1021.67 AED 1,021.67 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V-240V alternating current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists._ [SR3B261FU]

    Specifications

    Main

    Range of productZelio Logic
    Product or component typeModular smart relay

    Complementary

    Local displayWith
    number or control scheme lines0…500 with FBD programming
    0…240 with ladder programming
    Cycle time6…90 ms
    backup time10 years at 25 °C
    clock drift12 min/year at 0…55 °C
    6 s/month at 25 °C
    ChecksProgram memory on each power up
    [Us] rated supply voltage100...240 V
    Supply voltage limits85…264 V
    Supply frequency50/60 Hz
    maximum supply current100 mA at 100 V (without extension)
    50 mA at 240 V (without extension)
    60 mA at 240 V (with extensions)
    80 mA at 100 V (with extensions)
    power consumption in VA12 VA without extension
    17 VA with extensions
    Isolation voltage1780 V
    Protection typeAgainst inversion of terminals (control instructions not executed)
    discrete input number16
    discrete input voltage100...240 V AC
    Discrete input current0.6 mA
    Discrete input frequency47...53 Hz
    57...63 Hz
    voltage state 1 guaranteed>= 79 V for discrete input
    voltage state 0 guaranteed<= 40 V for discrete input
    current state 1 guaranteed>= 0.17 mA (discrete input)
    current state 0 guaranteed<= 0.5 mA (discrete input)
    input impedance350 kOhm for discrete input
    number of outputs10 relay
    output voltage limits5...30 V DC (relay output)
    24...250 V AC
    contacts type and compositionNO for relay output
    output thermal current5 A for 2 outputs for relay output
    8 A for 8 outputs for relay output
    electrical durabilityAC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1
    AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1
    DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1
    DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1
    switching capacity in mA>= 10 mA at 12 V (relay output)
    operating rate in Hz0.1 Hz (at Ie) for relay output
    10 Hz (no load) for relay output
    mechanical durability10000000 cycles for relay output
    [Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
    ClockWith
    response time50 ms with ladder programming (from state 0 to state 1) for discrete input
    50 ms with ladder programming (from state 1 to state 0) for discrete input
    50...255 ms with FBD programming (from state 0 to state 1) for discrete input
    50...255 ms with FBD programming (from state 1 to state 0) for discrete input
    10 ms (from state 0 to state 1) for relay output
    5 ms (from state 1 to state 0) for relay output
    connections - terminalsScrew terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
    Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid
    Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
    Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid
    Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end
    Tightening torque0.5 N.m
    overvoltage categoryIII conforming to EN/IEC 60664-1
    Product weight0.4 kg

    Environment

    immunity to microbreaks10 ms
    Product certificationsGOST
    GL
    CSA
    UL
    C-Tick
    StandardsEN/IEC 61000-4-12
    EN/IEC 60068-2-27 Ea
    EN/IEC 60068-2-6 Fc
    EN/IEC 61000-4-6 level 3
    EN/IEC 61000-4-5
    EN/IEC 61000-4-11
    EN/IEC 61000-4-3
    EN/IEC 61000-4-2 level 3
    EN/IEC 61000-4-4 level 3
    IP degree of protectionIP20 (terminal block) conforming to IEC 60529
    IP40 (front panel) conforming to IEC 60529
    environmental characteristicEMC directive conforming to EN/IEC 61000-6-2
    EMC directive conforming to EN/IEC 61000-6-3
    EMC directive conforming to EN/IEC 61000-6-4
    EMC directive conforming to EN/IEC 61131-2 zone B
    Low voltage directive conforming to EN/IEC 61131-2
    disturbance radiated/conductedClass B conforming to EN 55022-11 group 1
    pollution degree2 conforming to EN/IEC 61131-2
    ambient air temperature for operation-20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
    -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
    Ambient air temperature for storage-40…70 °C
    Operating altitude2000 m
    Maximum altitude transport3048 m
    relative humidity95 % without condensation or dripping water
