  3. Schneider Signaling Zelio_ on-delay timing relay - 1 s..100 h - 24..240 V AC - 1 OC_ [RE17RAMU]
Public Pricelist
Schneider Signaling Zelio_ on-delay timing relay - 1 s..100 h - 24..240 V AC - 1 OC_ [RE17RAMU]

Schneider Signaling Zelio_ on-delay timing relay - 1 s..100 h - 24..240 V AC - 1 OC_ [RE17RAMU]

https://www.hsedubai.com/web/image/product.template/62720/image_1920?unique=29e3b48

Industrial Automation / Signaling / Relay

121.03 AED 121.03 AED 121.03 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

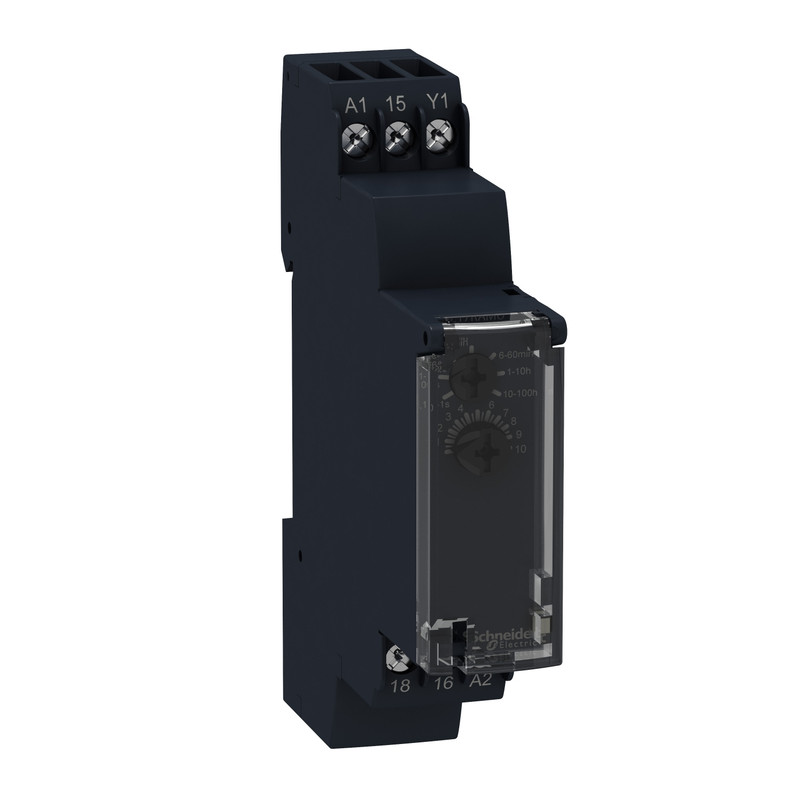

    This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. This timer offers pause and summation control signals. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.[RE17RAMU]

    Specifications

    Main

    Range of productHarmony Timer Relays
    Product or component typeDual function relay
    Discrete output typeRelay
    Width17.5 mm
    Device short nameRE17R
    Time delay typePower on-delay
    Time delay range1...10 min
    10...100 h
    0.1...1 s
    6...60 s
    6...60 min
    1...10 s
    1...10 h
    Nominal output current8 A

    Complementary

    Contacts type and composition1 C/O
    Contacts materialCadmium free
    Height90 mm
    Depth72 mm
    control typeSelector switch front panel
    [Us] rated supply voltage24...240 V AC 50/60 Hz
    24 V DC
    Voltage range0.85...1.1 Us
    supply frequency50...60 Hz +/- 5 %
    release of input voltage10 V
    connections - terminalsScrew terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
    Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
    Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
    Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
    tightening torque0.6…1 N.m conforming to IEC 60947-1
    Housing materialSelf-extinguishing
    repeat accuracy+/- 0.5 % conforming to IEC 61812-1
    Temperature drift+/- 0.05 %/°C
    Voltage drift+/- 0.2 %/V
    setting accuracy of time delay+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
    control signal pulse width100 ms with load in parallel typical
    30 ms typical
    insulation resistance100 MOhm at 500 V DC conforming to IEC 60664-1
    reset time120 ms on de-energisation typical
    On-load factor100 %
    power consumption in VA0…32 VA at 240 V AC
    maximum power consumption in W0.6 W at 24 V DC
    minimum switching current10 mA at 5 V DC
    maximum switching current8 A AC/DC
    maximum switching voltage250 V AC
    Breaking capacity2000 VA
    operating frequency10 Hz
    electrical durability100000 cycles (8 A at 250 V AC maximum) for resistive load
    Mechanical durability10000000 cycles
    dielectric strength2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1
    [Uimp] rated impulse withstand voltage5 kV during 1.2/50 µs
    power on delay100 ms
    MarkingCE
    creepage distance4 kV/3 conforming to IEC 60664-1
    Safety reliability dataB10d = 270000
    MTTFd = 296.8 years
    mounting positionAny position in relation to normal vertical mounting plane
    mounting support35 mm DIN rail conforming to EN/IEC 60715
    local signallingLED indicator for on steady: relay energised, no timing in progress
    LED indicator for flashing: timing in progress 80 % ON and 20 % OFF
    LED indicator for pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) 5 % ON and 95 % OFF
    Net weight0.07 kg
    Time delay typeA, At
    FunctionalityOn-delay timing
    Compatibility codeRE17

    Environment

    Immunity to microbreaks20 ms
    Standards2006/95/EC
    2004/108/EC
    IEC 61812-1
    EN 61000-6-3
    EN 61000-6-1
    EN 61000-6-4
    EN 61000-6-2
    Product certificationsCSA
    cULus
    GL
    Ambient air temperature for storage-30…60 °C
    Ambient air temperature for operation-20…60 °C
    IP degree of protectionIP20 (terminal block) conforming to IEC 60529
    IP40 (housing) conforming to IEC 60529
    IP50 (front panel) conforming to IEC 60529
    vibration resistance20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6
    shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
    relative humidity93 % without condensation conforming to IEC 60068-2-30
    electromagnetic compatibilityElectrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2
    Electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2
    Susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3
    Electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4
    Electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4
    1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5
    1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5
    Conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6
    Voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11
    Voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11
    Conducted and radiated emissions: , class B, conforming to EN 55022
