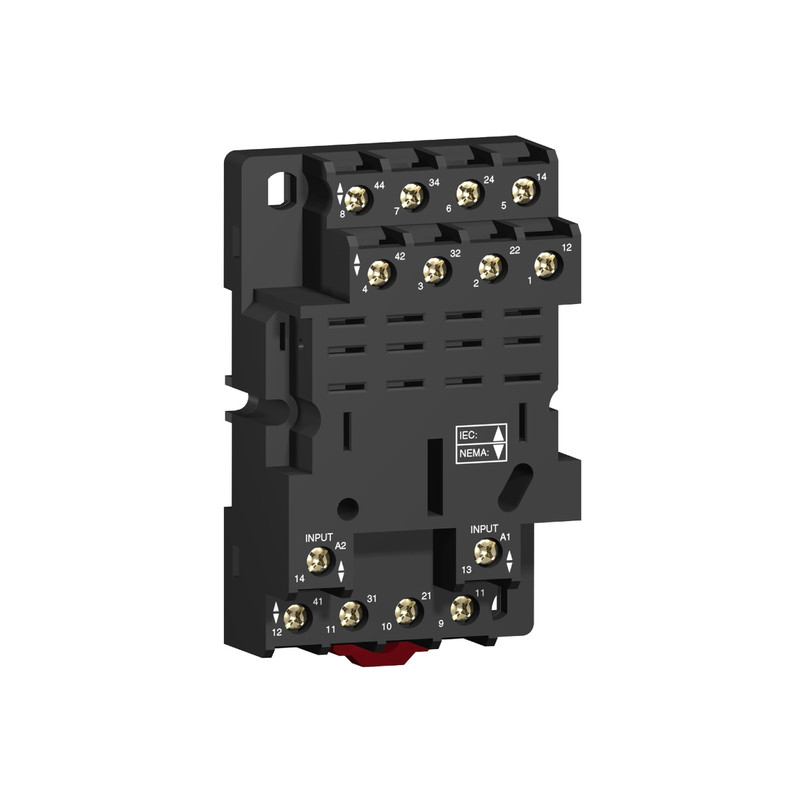

Schneider Signaling Zelio Relay_ Harmony, Socket, for RPM4 power relays, 16 A screw clamp terminals, mixed contact_ [RPZF4]

Schneider Signaling Zelio Relay_ Harmony, Socket, for RPM4 power relays, 16 A screw clamp terminals, mixed contact_ [RPZF4]

https://www.hsedubai.com/web/image/product.template/60475/image_1920?unique=29e3b48

Industrial Automation / Signaling / Relay Accessories

32.00 AED 32.0 AED 32.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    "This Harmony RPM plug-in socket has a rated voltage of 250V AC with an output rating of 16A." "This plug-in relay socket is compatible with interface plug-in relay RXM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0_ [RPZF4]

    Specifications

    Main

    Range of productHarmony Electromechanical Relays
    Product or component typeSocket
    Contact terminal arrangementMixed
    product compatibilityPlug-in relay RPM with 4 C/O contact
    Shape of pinFlat
    Device short nameRPZ
    Sale per indivisible quantity10

    Complementary

    [Ith] conventional free air thermal current16 A
    [Ue] rated operational voltage< 250 V
    tightening torque< 1 N.m for M3.5 screw(s)
    fixing modeBy screw (panel)
    Clip-on (35 mm symmetrical DIN rail)
    MarkingCE
    Width50 mm
    Net weight0.094 kg
    [Uimp] rated impulse withstand voltage4 kV
    Overvoltage categoryIII
    Pollution degree3

    Environment

    connections - terminals- screw clamp terminals, flexible cable with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14
    - screw clamp terminals, solid cable without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16
    - screw clamp terminals, flexible cable with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14
    - screw clamp terminals, solid cable without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16
    StandardsIEC 61984
    Product certificationsUL
    CSA
    Ambient air temperature for storage-40…85 °C
    Ambient air temperature for operation-40…55 °C
    IP degree of protectionIP20 conforming to EN/IEC 60529
    Dielectric strength2500 V
