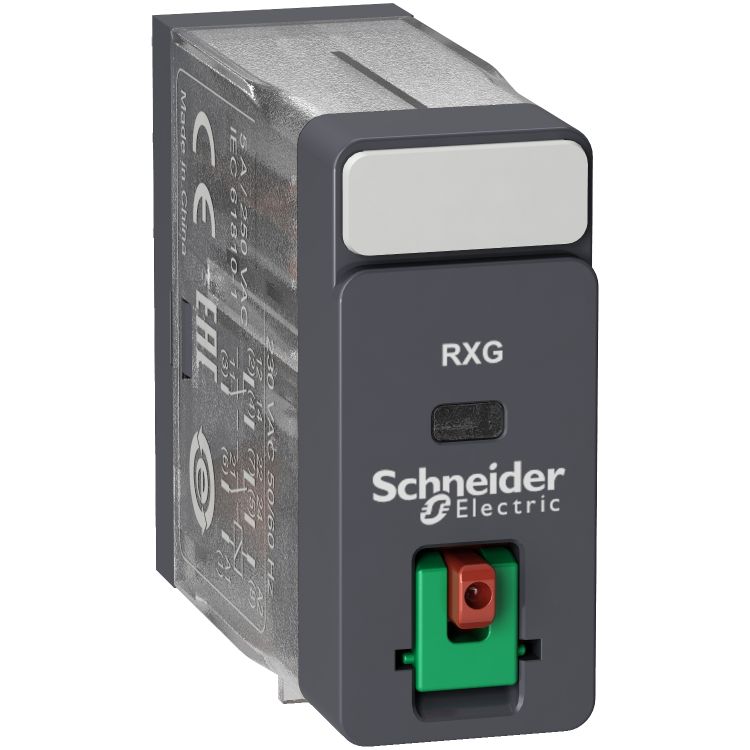

Schneider Signaling Zelio Relay_ interface plug-in relay - Zelio RXG - 2 C/O standard - 230V AC - 5A - with LTB_ [RXG21P7]
Industrial Automation / Signaling / Relay
This Zelio RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A. It has large choice of number of contacts for high rated current use with space-saving design. It also offers a lockable test button. The faston pin terminal mounts quickly and securely. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs)._ [RXG21P7]
Specifications
Main
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | Interface relay |
| Product or component type | Plug-in relay |
| Device short name | RXG |
| Contacts type and composition | 2 C/O |
Complementary
| Status LED | Without |
|---|---|
| Contacts material | Silver alloy (AgSnO2In2O3) |
| Maximum contact resistance | 100 mOhm |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
| [Ie] rated operational current | 5 A at 30 V (DC) conforming to UL 5 A at 30 V (DC) conforming to IEC 5 A at 250 V (AC) conforming to IEC 5 A at 250 V (AC) conforming to UL |
| maximum switching voltage | 250 V AC 30 V DC |
| load current | 5 A at 250 V AC |
| maximum switching capacity | 1250 VA |
| minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| operating rate | <= 1800 cycles/hour under load <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Mechanical durability | 10000000 cycles |
| electrical durability | 100000 cycles for NO resistive load at 55 °C 100000 cycles for NC resistive load at 55 °C |
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 6 kV 1.2/50 µs |
| dielectric strength | 1000 V AC between contacts with micro disconnection 5000 V AC between coil and contact with reinforced insulation 3000 V AC between poles with basic insulation |
| Coil resistance | 23500 Ohm +/- 15 % |
| insulation resistance | 1000 MOhm at 500 V DC |
| test levels | Level A group mounting |
| Mounting position | Any position |
| Average consumption in VA | 0.82 VA 60 Hz |
| drop-out voltage threshold | >= 0.3 Uc AC |
| control circuit voltage limits | 0.8...1.1 Uc AC |
| Coil insulation class | Class F |
| Operate time | 20 ms |
| Release time | 20 ms |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Safety reliability data | B10d = 100000 |
| Colour of cover | Standard |
| Control type | Lockable test button |
| Local signalling | Flag |
| Torque value | 0.8 N.m |
| Net weight | 0.02 kg |
| Device presentation | Complete product |
Environment
| vibration resistance | 3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation 5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation |
|---|---|
| IP degree of protection | IP40 |
| shock resistance | 20 gn in operation 100 gn not in operation |
| Protection category | RT I |
| Standards | IEC 61810-1 UL 508 CSA C22.2 No 14 |
| Product certifications | UL CSA EAC CE DNV-GL |
| Pollution degree | 2 |
| Overvoltage category | III |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| Relative humidity | 10…85 % |
